Electric Fan Relay Kit with Thermostat - 40 AMP Waterproof Cooling Fan Wiring Kit (185°F On/175°F Off) - Radiator Fan Temperature Sensor Switch for Car, Truck & SUV Cooling Systems - Perfect for Engine Overheating Protection & Performance Upgrades

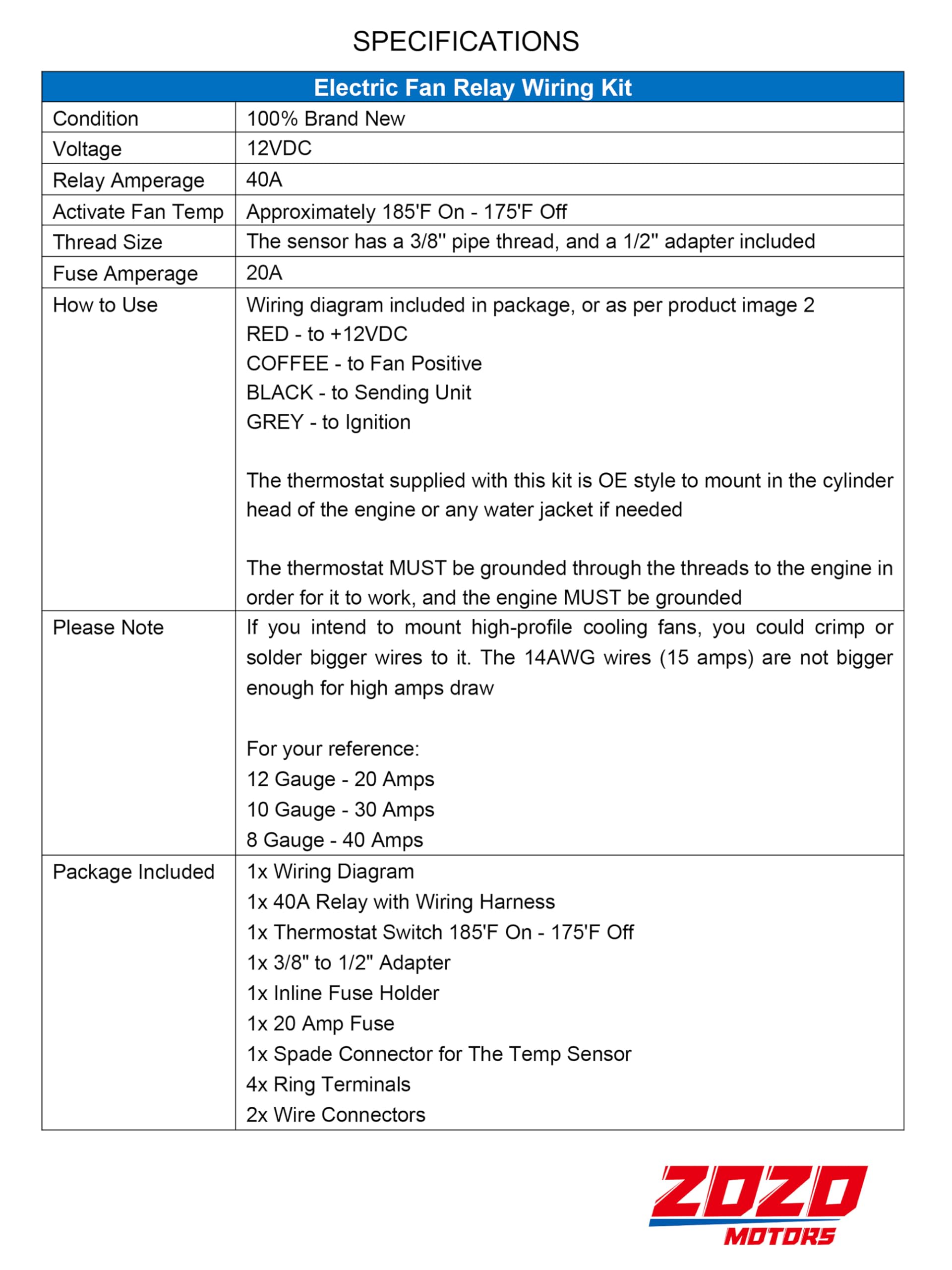

ZOZOMOTORS Electric Fan Relay Wiring Kit Specifications: Voltage: 12VDCTemperature: Approximately 185'F On - 175'F Off Please note: You need to run a 160 degree thermostat when running this kit with this temp switch. If you got a thermostat above 160 degrees (say 180 thermostat) , your engine will not get cool enough for the fan to shut off Thread Size: the temperature sensor has a 3/8'' pipe thread, and a 1/2'' adapter includedHow to use: Connect the color-coded wires per the diagram (product image 4) The temperature switch supplied with this kit is OE style to mount in the cylinder head of the engine or any water jacket if needed The temperature switch MUST be grounded through the threads to the engine in order for it to work, and the engine MUST be grounded This relay kit is enough to run medium profile or low profile cooling fan. For high profile fan, you can use ZOZOMOTORS heavy duty relay kit P/N 30247. Or crimp/solder bigger wires yourself for pin 30 & 87 to carry enough load for the fan (10 gauge wire - 30 Amps). We recommend to use dual fan relay kit to run dual fan set up If you want to turn on the fan when A/C compressor activates, you would need an additional relay kit and follow the steps below: Connect the RED wire (30 pin) from the A/C relay to the black wire (sending unit) of the original fan relay harnessConnect the GREY (86 pin) and COFFEE (87 pin) wires from the A/C relay to the groundConnect the BLACK wire (85 pin) from the A/C relay to the +12 volt of the A/C compressor clutch wire Package Included: 1x Wiring Diagram 1x 40A Relay with Wiring Harness 1x Temperature Switch 185'F On - 175'F Off 1x 3/8" to 1/2" Adapter 1x Inline Fuse Holder 1x 20 Amp Fuse 1x Spade Connector for The Temp Sensor 4x Ring Terminals 2x Wire Connectors Package Included: 1x Wiring Diagram 1x 40A Relay with Wiring Harness 1x Temperature Switch 185'F On - 175'F Off 1x 3/8" to 1/2" Adapter 1x Inline Fuse Holder 1x 20 Amp Fuse 1x Spade Connector for The Temp Sensor 4x Ring Terminals 2x Wire Connectors 185 On 175 Off Dual Fan Relay Kit ZOZOMOTORS Electric Fuel Pump Relay Kit Fuel Pump Wiring Harness Bypass 40 AM... Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 411 4.6 out of 5 stars 156 Price $35.99$35.99 $32.99$32.99 Wire Gauge 14 AWG 10 AWG

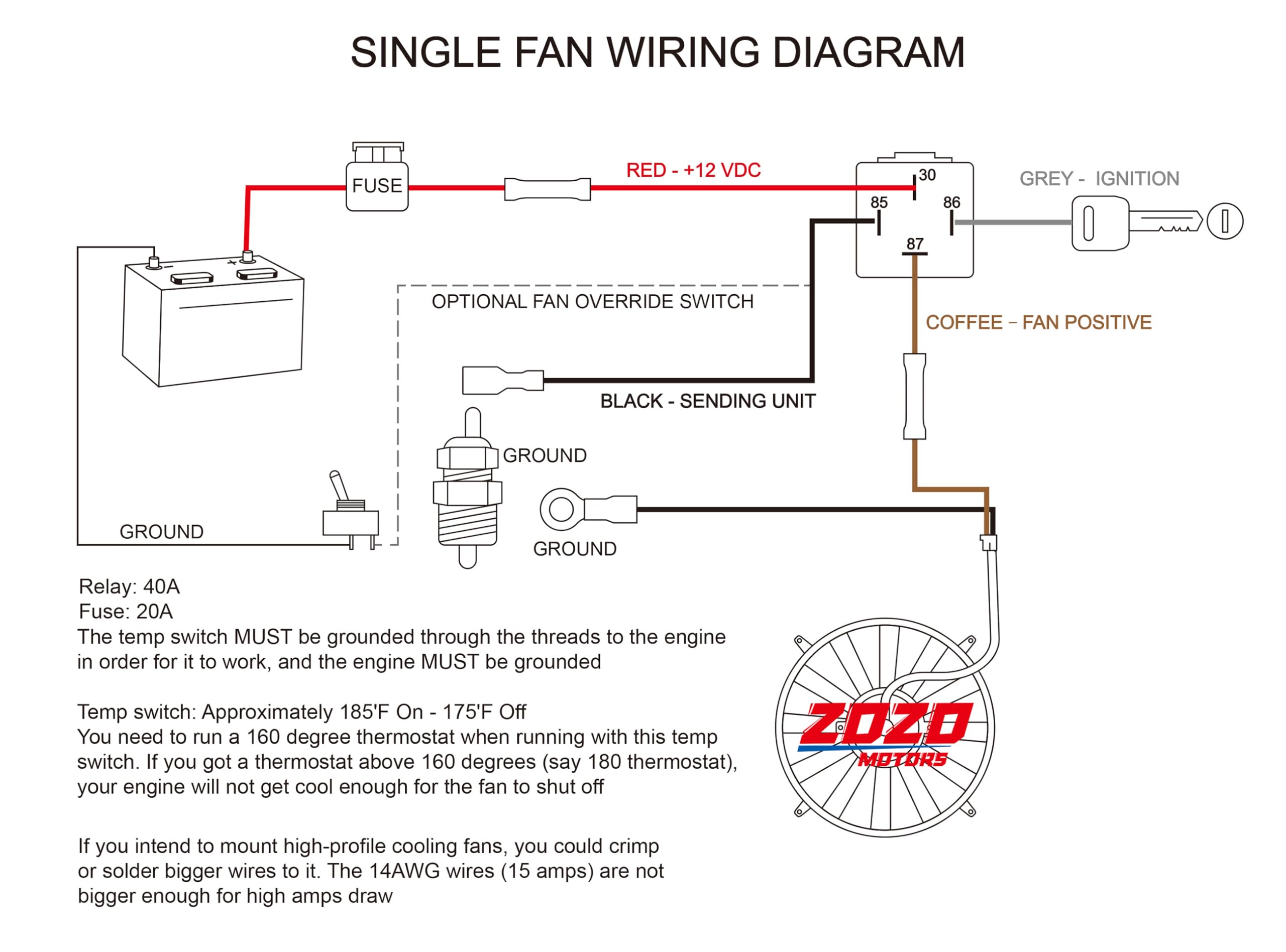

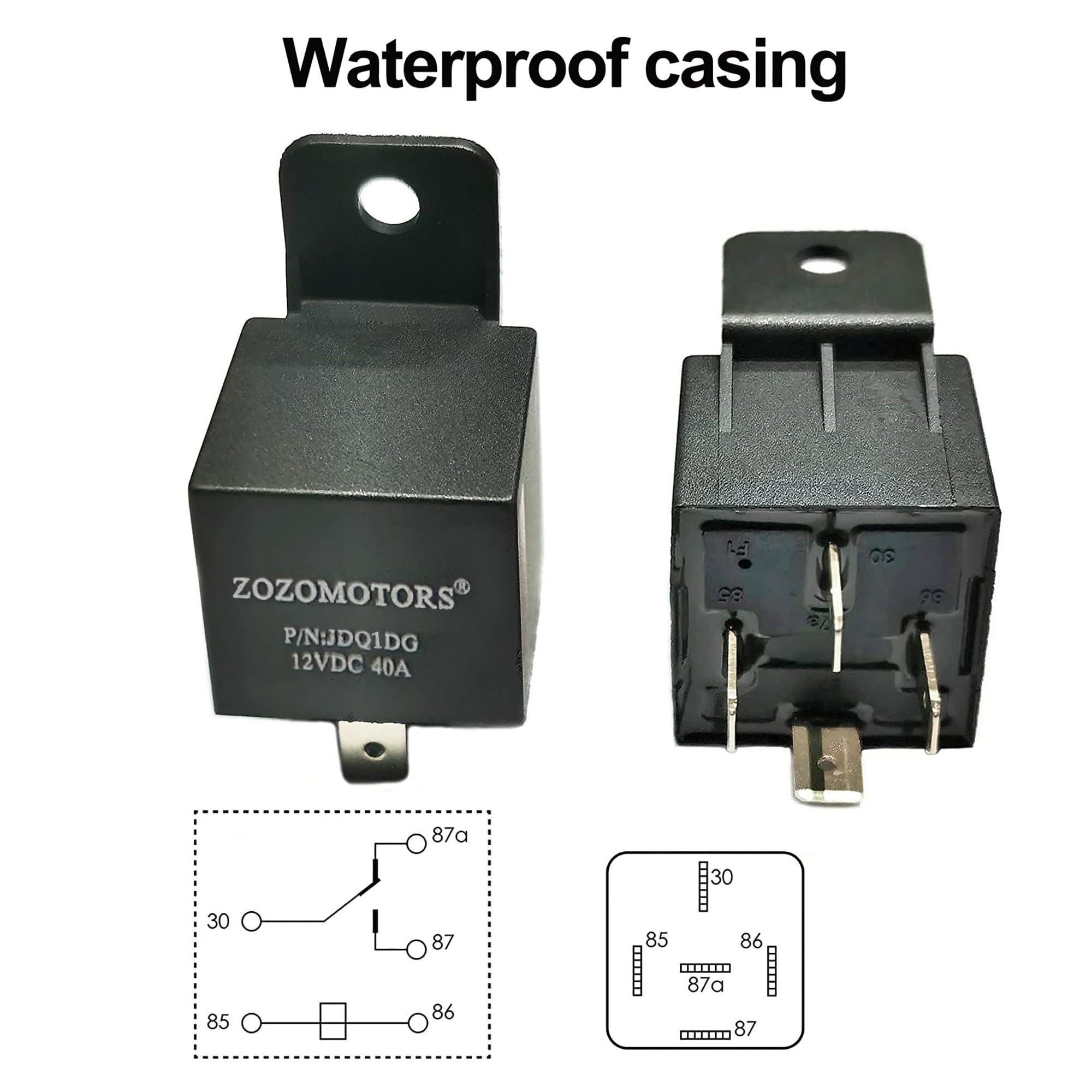

Easy to follow wiring diagram simplify wiring your electric fans. RED to 12VDC positive battery terminal, COFFEE to Fan Positive, BLACK to Sending Unit, GREY to Ignition per wiring diagram. Direct replacement part fits 10, 12, 14, and 16 inch cooling fans. For dual fan wiring, you would need two of this relay kit

Temperature switch turns on fan approximately at 185 Degrees and Off at 175 Degrees. The temp sensor has a 3/8 inch pipe thread, and a 1/2 inch adapter included. Please note you need to run a 160 degrees thermostat when running this kit with this temp switch. If you got a thermostat above 160 degrees (say 180 thermostat) , your engine will not get cool enough for the fan to shut off

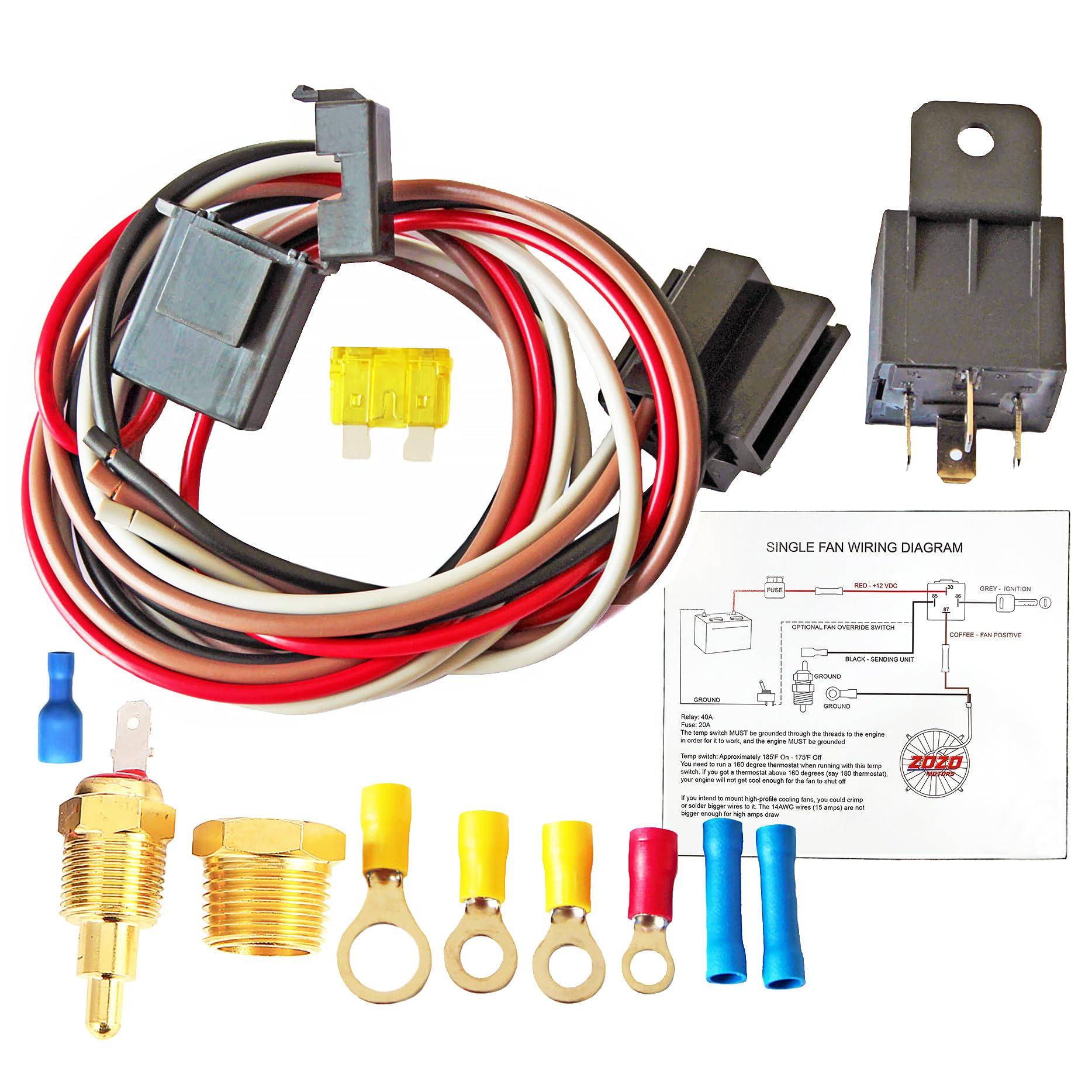

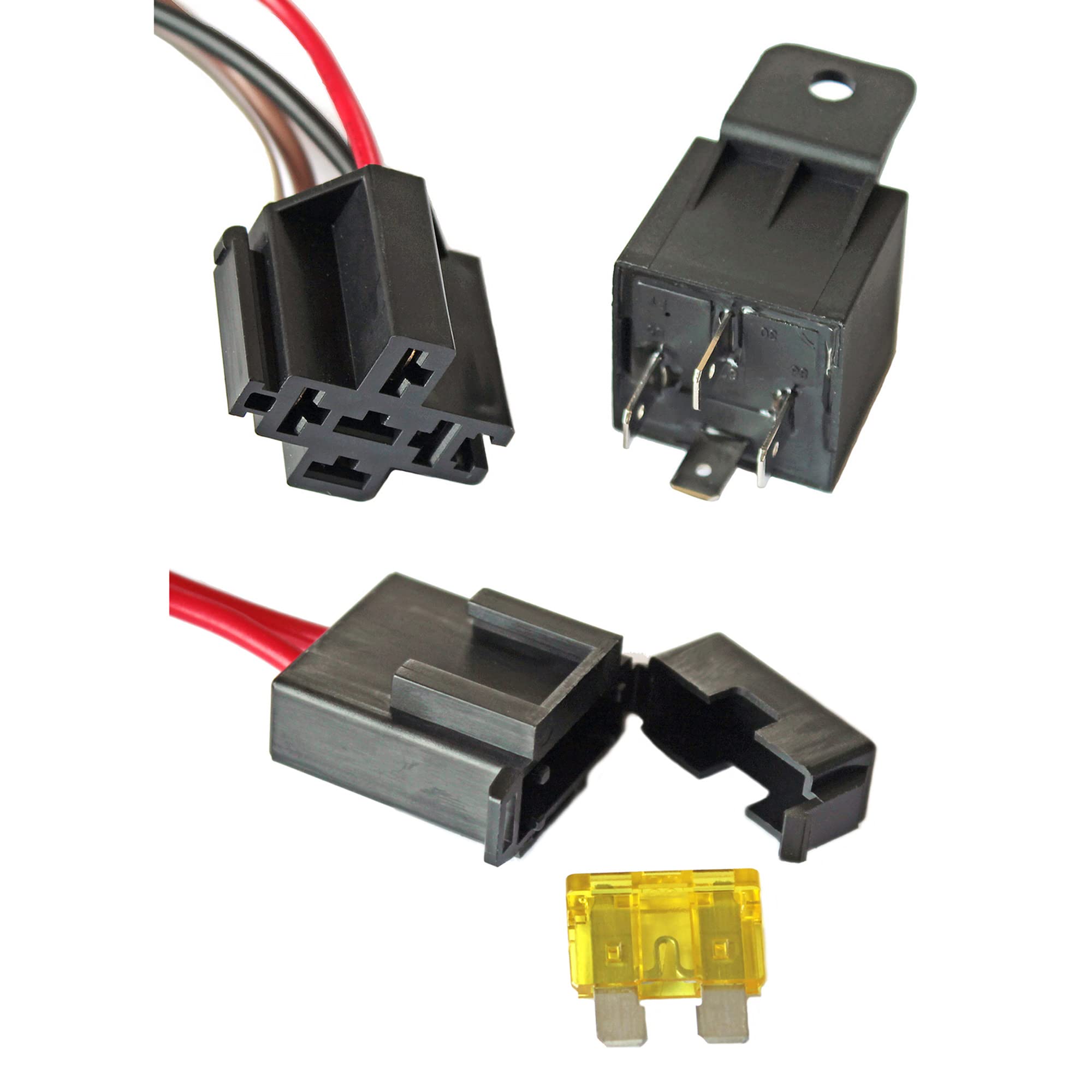

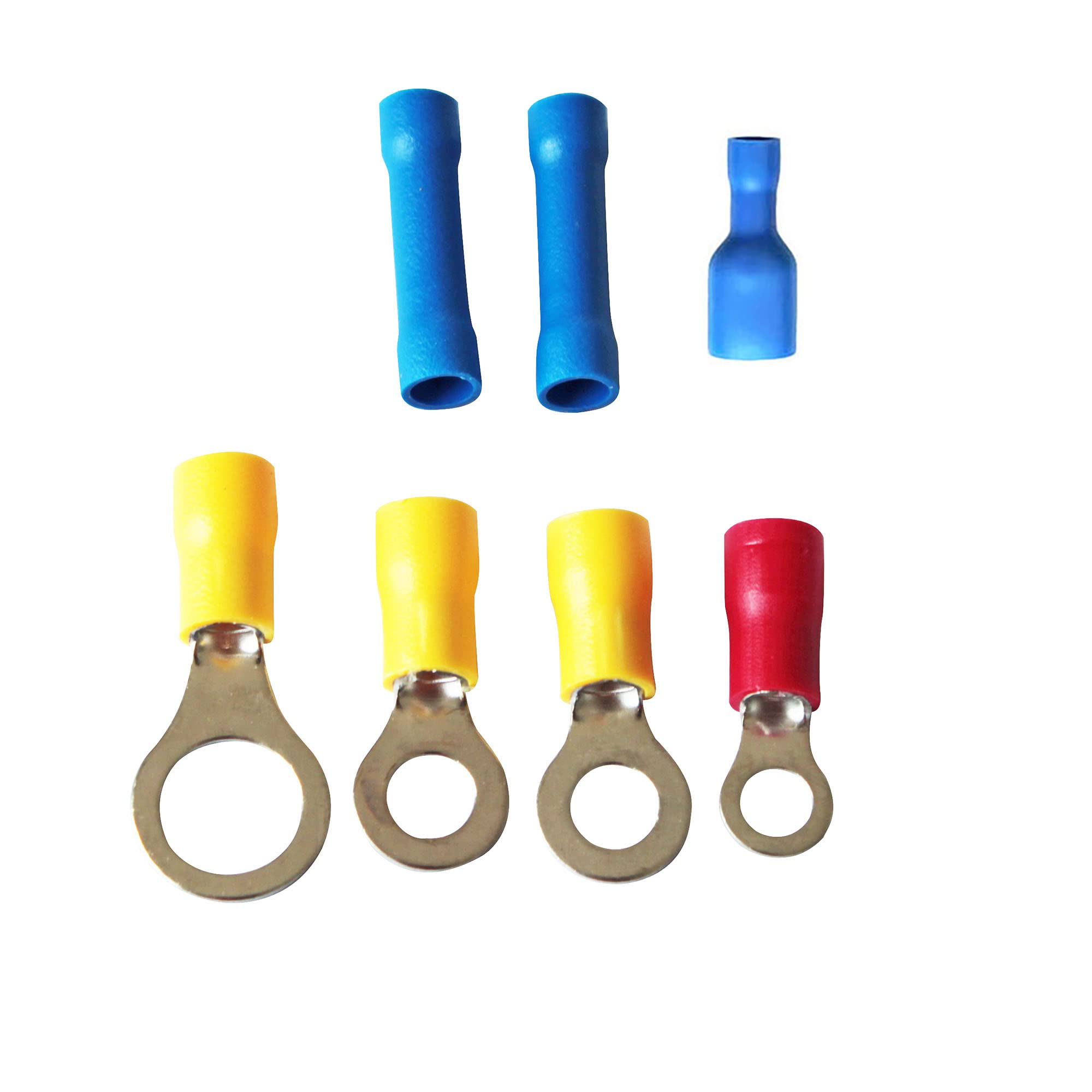

This electric cooling fan kit comes with everything you need, includes 40A relay, wiring harness, temperature switch, 3/8 inch to 1/2 inch adapter, inline fuse holder, 20 amp fuse, 1 spade connector for the temp sensor, 4 ring terminals and 2 wire connectors

The temperature switch supplied with this kit is OE style to mount in the cylinder head of the engine or any water jacket if needed. The temperature switch MUST be grounded through the threads to the engine in order for it to work, and the engine MUST be grounded

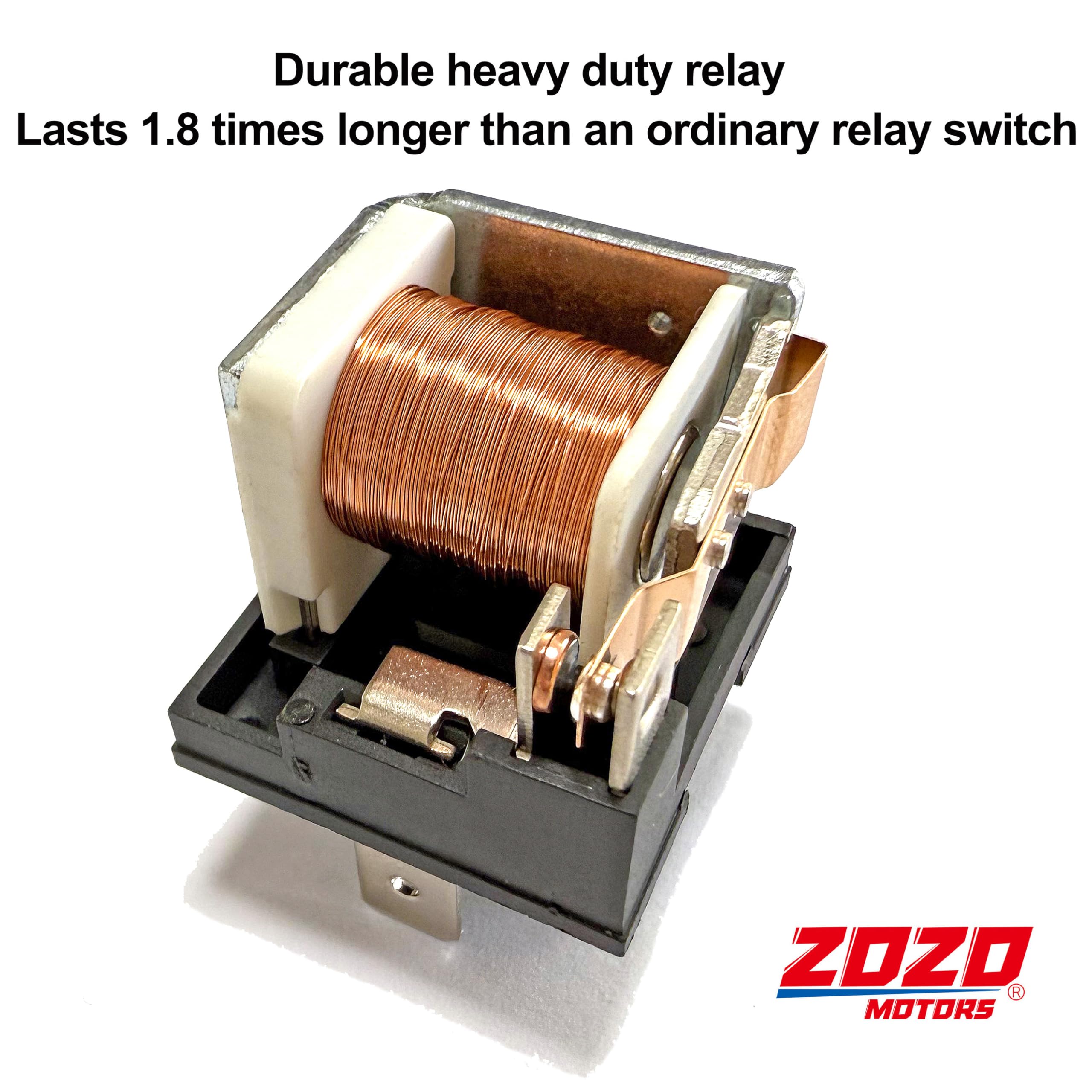

This relay kit is enough to run medium profile or low profile electric fan. For high profile fan, you can use ZOZOMOTORS heavy duty relay kit P/N 30247. Or crimp/solder bigger wires yourself for pin 30 & 87 to carry enough load for the fan (10 gauge wire - 30 Amps). Recommend to use dual fan relay kit to run dual fan set up
