Xunn Electric Bike Conversion Kit - 48V 1000W Motor with LCD6 Display, Excellent Heat Dissipation for E-Bike & Scooter Conversion - Perfect for Commuting, Mountain Biking & Urban Transportation

Specification:Item Type: Electric Bike Conversion Kit Material: Aluminum Alloy + ABS plasticController Box Size: Approx. 82x53x31mm / 3.2x2.1x1.2inInstrument Size: Approx. 77x50mm / 3.0x2.0inController Rated Voltage: DC 36V/48VController Rated Current: 7AController Maximum Current: 15±1AController Speed Setting: 1-4.2VController Brake Input: Low LevelController Low Voltage Protection: DC 30/40±0.5VApplicable Brushless Motor Power: 250W, 350WConnector Type: Fully Waterproof Connector1 to 2 Wire Description: One End Connected to the Controller, the Other Two Ends Connected to the Instrument and Finger DialController wire definition:1. Red, black single wire: power wire 2. Single large black wire (9pin): motor wire3. Single black wire (9pin): 1 To 2 wire4. Single black wire (3pin): PAS power sensor wireLCD6 meter function description: up button, on/off button, down button, one way time, total travel time, ride speed (metric), ride speed (imperial), maximum speed, average speed, PAS marker, CADENCE display, distance (metric), distance (imperial), travel distance, total distance, battery voltage, backlight and headlight, brake display, cruising function display, PAS start display, open throttle, 6KM/H thrust assist system, motor temperature (°F/°C), motor power, ambient temperature (°F/°C)How to Use:Description of the controller: The wire colour definition interface on the controller can be connected to the socket of the accessory to achieve the function, the specific operation can refer to the wiring diagram and the manual. Package List:1 x Controller 1 x Instrument1 x Instrument Mounting Bracket4 x Gauge Mounting Bracket Washers2 x Instrument Mounting Bracket Screws1 x Instrument Manual1 x Throttle Pointer 1 x Sensor 1 x Controller Wiring Instructions 1 x One Two Connection

Application: Controller small kit for 250W,350W brushless motors; Main uses: DIY e bikes, electric bikes, electric scooters, folding bikes, etc.; Easy to maintain, great fun to ride, suitable for who like challenges.

Multifunction: The display meter shows the on/off button, total travel time, riding speed, PAS markers, CADENCE display, distance, backlight and headlight, brake display, function display, PAS start display, 6KM/H thrust assist system, ambient temp

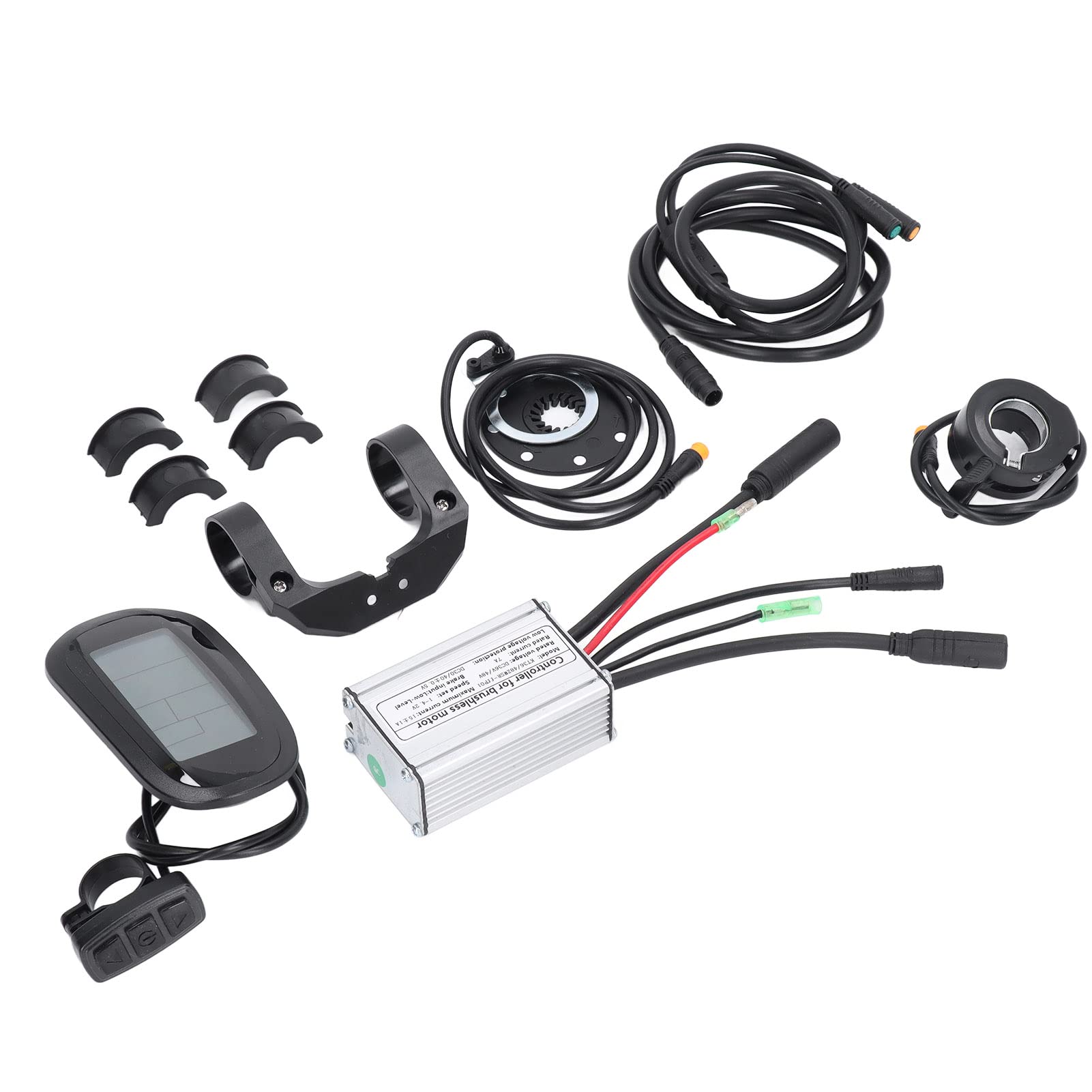

Full Set: lithium conversion controller small kit includes Quintessence 15A controller + LCD6 meter + 130X finger paddle + 8C + one tow two connection cable.

Excellent Heat Dissipation: The controller housing is made of high quality metal with a fluted design, which the internal circuitry from thermal overload due to its good heat dissipation.

Premium Material: The instrument is made of high quality ABS material, lightweight and robust, with fine workmanship, good toughness and waterproof performance, providing better protection for the internal circuitry and making it more durable.
