Bnineteenteam 15A Brushless Motor & Controller Kit for 250W-300W Electric Bikes and Scooters - Compatible with S6 Panel - Perfect for Commuting and Urban Transportation

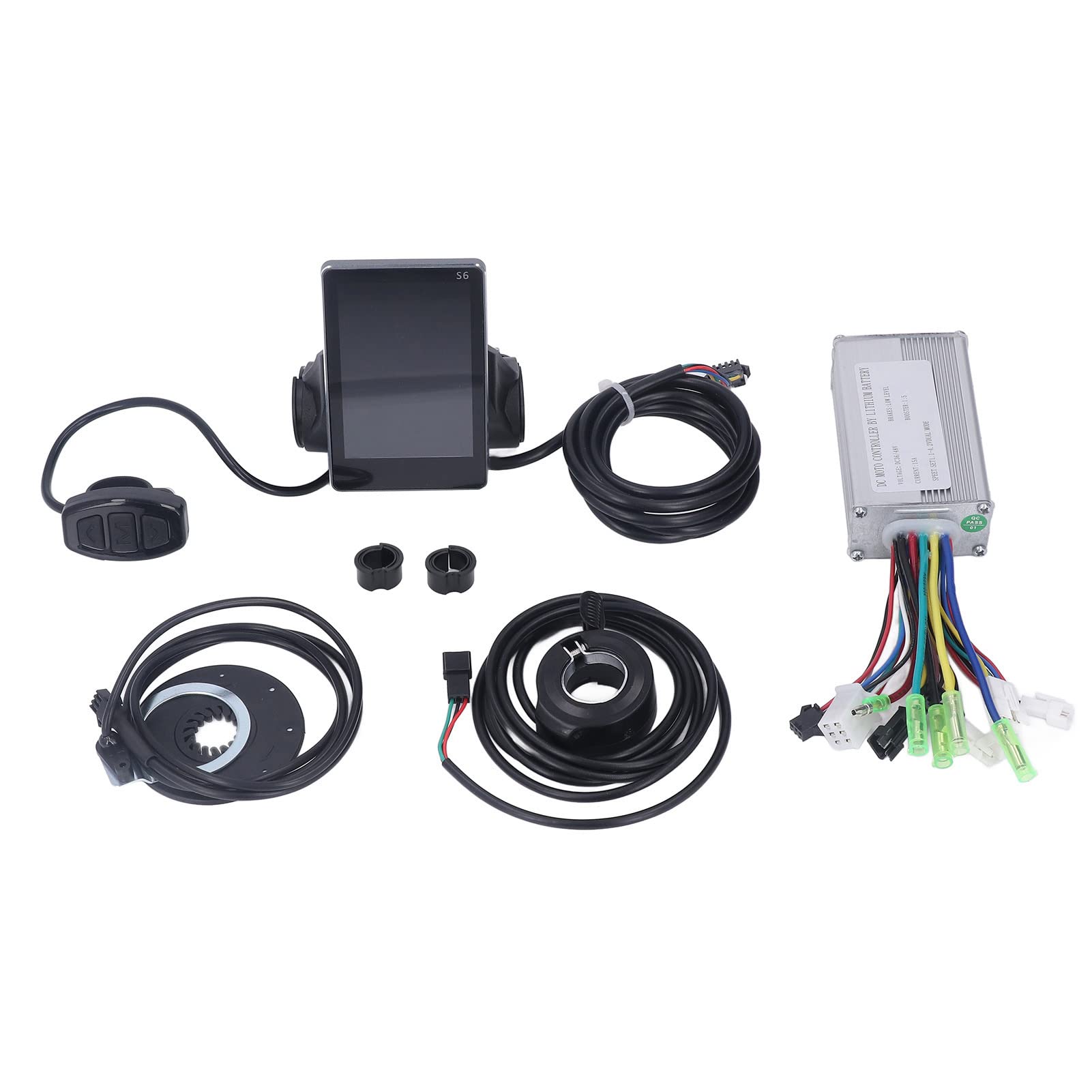

15A Electric Bike Brushless Motor,Electric Scooter Brushless Controller with S6 Panel for 250W 300W Motor How to Use: Connect the line, please refer to the manual for specific operation. Specification: Item Type: Electric Bike Controller Kit Material: ABS, Rubber, Aluminum Alloy, Metal Controller Size: Approx. 9 x 5 x 3cm / 3.5 x 2.0 x 1.2in Weight: Approx. 669g / 23.6oz Rated voltage of controller: DC 36V 48V Controller Current: 15A Controller Speed Setting: 1.1-4.2V Supercharger: 1:5 Applicable Motor Power: 250W, 350W Braking: Input Low Level Controller line definition: 1. Black, yellow and brown three needle thread: Power Assist Magnetic Point 2. Red black white three needle thread: Accelerator 3. Black and yellow 2 pin cable: Power Off Brake Handle x 2 4. Green, yellow and blue single line: Phase Line 5. Multicolor six hole wire: Hall Wire 6. Multicolor five needle thread: Panel 7. Black red single line: Power Line 8. Black and red stitches: Light x 2 Package List: 1 x Controller 1 x S6 Panel (Including Bracket, Connector, Button) 2 x Rubber Washer 1 x Thumb Throttle 1 x 8C Power Assist Sensor Wire 1 x 8C Power Assist Sensor Chip 2 x Instructions Note: Note that the communication protocol is UART.

[Widely Use]: Suitable for 250W,350W motor. Main uses are DIY electric bike, electric bike, electric scooter, folding car, etc. Easy to maintain, it greatly enhances the pleasure of riding and is suitable for cyclists who like a challenge

[Easy to Install]: Connect the corresponding connector to the corresponding product according to the brushless controller interface description in the manual

[Powerful Function]: Display instrument has display and control functions, data on the panel can be easily viewed; As you ride your bike, a lot of data of your bike is displayed, such as remaining power, current speed, average speed, maximum speed, total mileage, and single mileage

[Good Heat Dissipation]: The controller shell is made of high quality metal with groov design. Due to its good heat dissipation function, it can protect the internal circuit and avoid thermal overload

[Waterproof]: High performance wire and waterproof interface are durable, ensuring brushless motor controller long term use and low failure rate
