Foundry-Tone Electric Delta 4-Pole Cigar Box Guitar Pickup – Perfect for Blues, Rock & DIY Instrument Builders

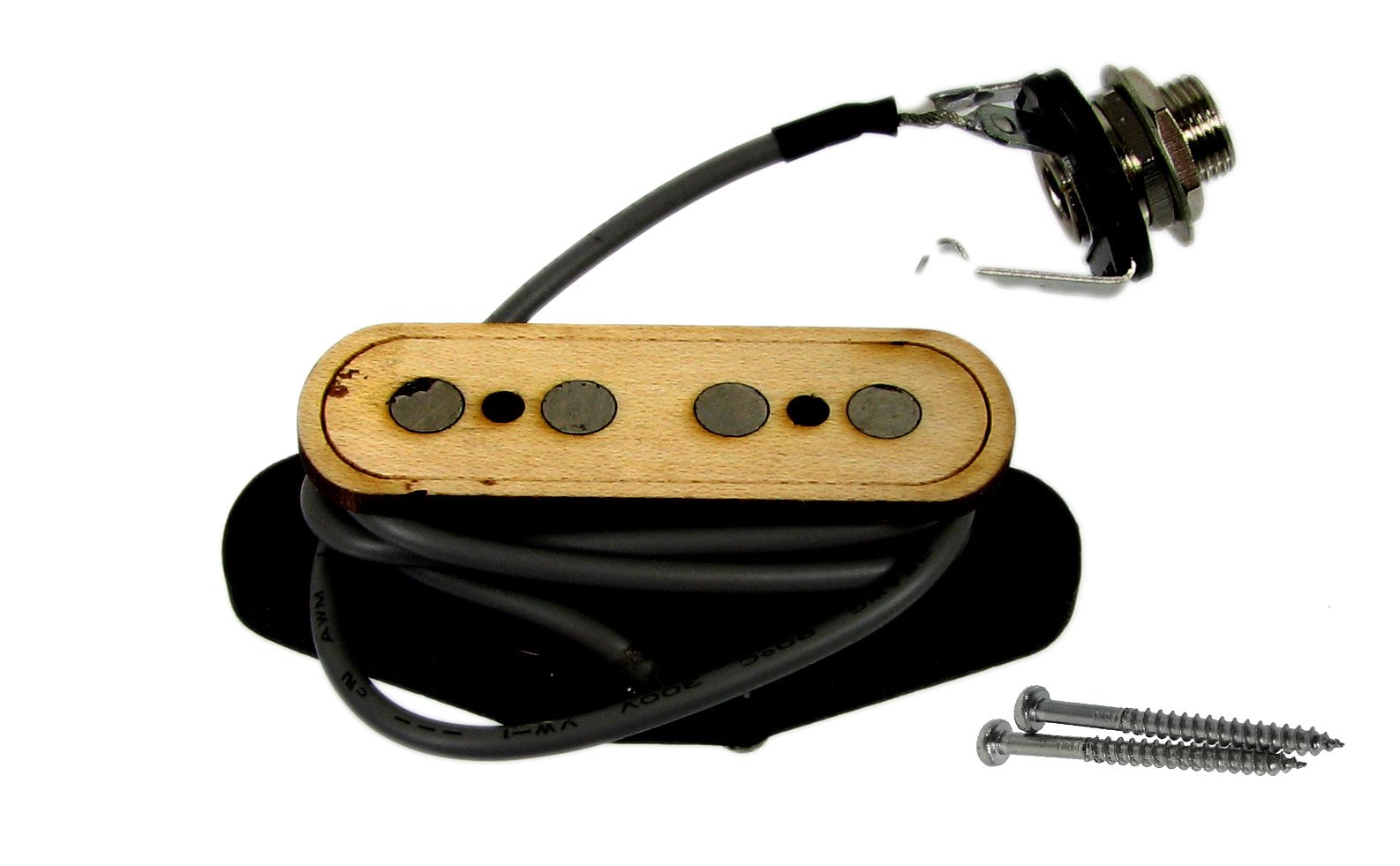

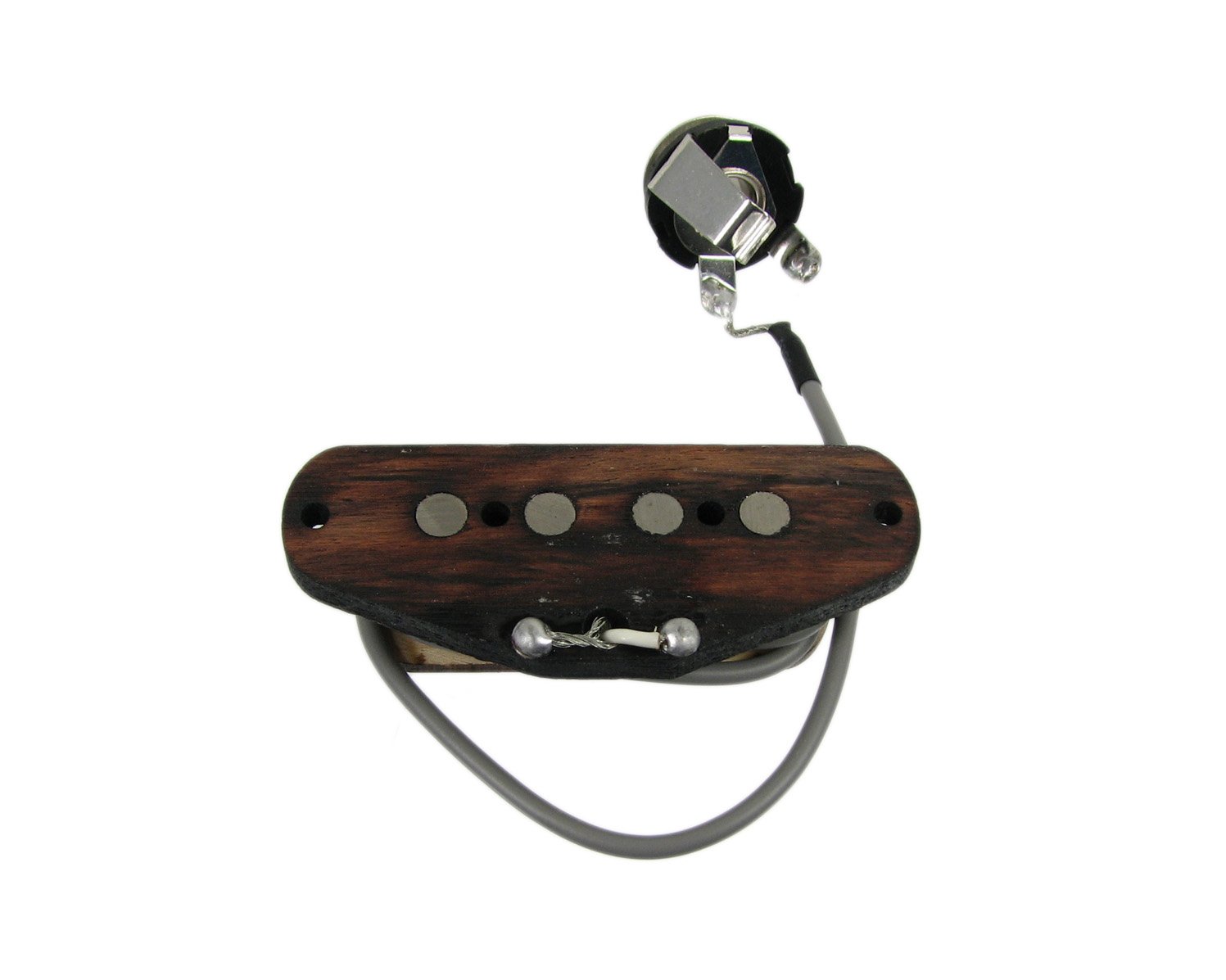

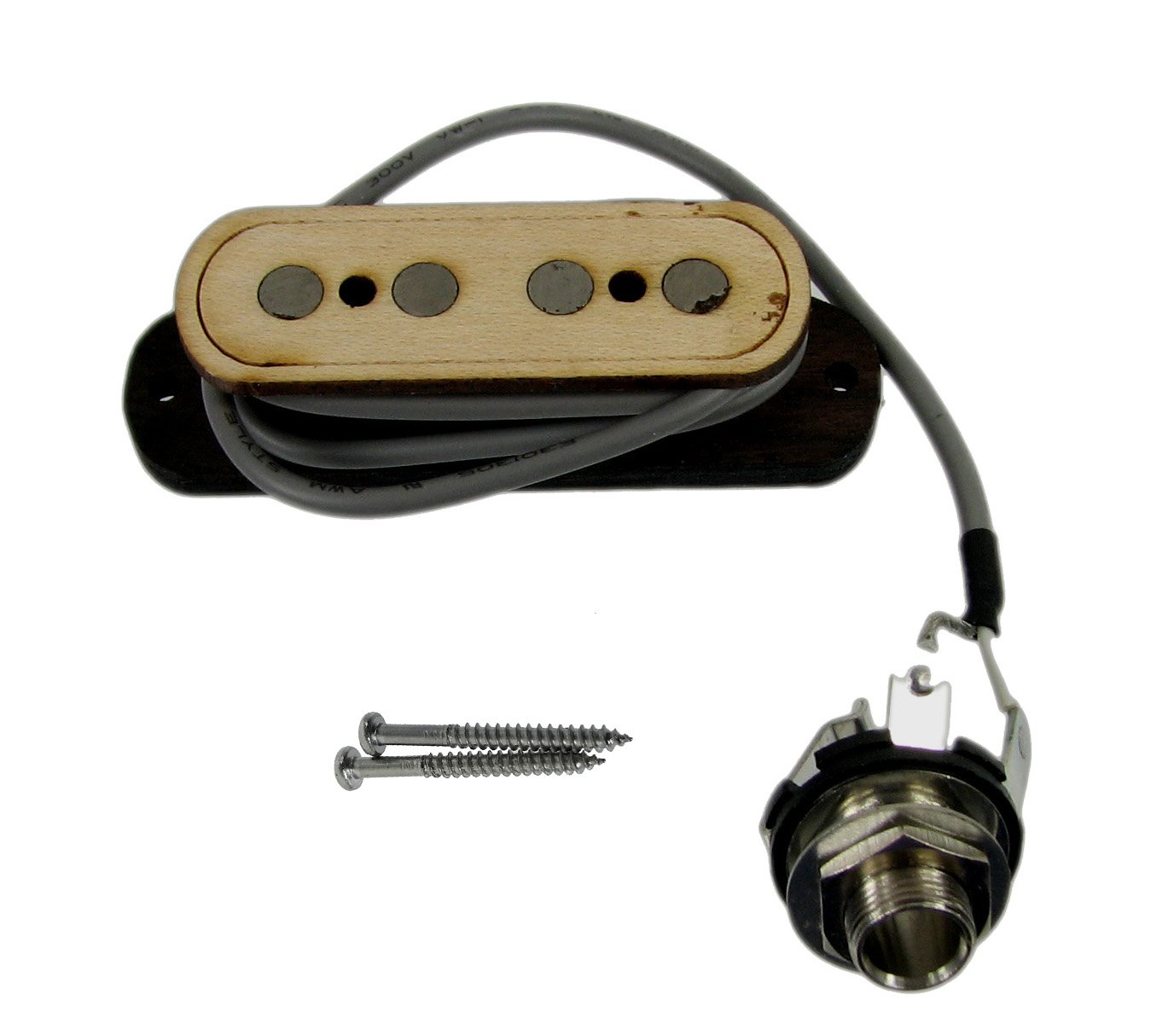

These pickups could be straight out of an inventor's barn in the 1940's. If the cigar box guitar was originally meant to be electrified, these would have been the pickups to do it. Consider them modern-vintage or an alternate universe time capsule where cigar boxes reigned over Str@ts. And the tone is pure Mississippi: a snarling single coil gnashing out 4.75 kOhms of fury. No wiring. No soldering. Just shove 'em in your next masterpiece and plug it into an amp. It's as simple as that. Never before has a true 4-pole pickup harness been available at this price! They have a laser-cut and engraved wooden top and bottom to the bobbin, and come pre-wired to a mono output jack with a 12-inch shielded lead. These pickups are intended to be mounted into the cavity of a guitar so that the top of the bobin extends up through an obling, rounded-end rectangle cut in the top. Chrome through-bobbin mounting screws are included. Size Specs: Pole spacing: ~7/16" center to center (~11mm) Total Pole Spread (center to center): 11/4" (31.8mm) Pickup Height: 11/16" (17mm) Top bobbin plate dimensions: 1 15/16" (50mm) x 5/8" (17mm) Bottom bobbin plate dimensions: 2 9/16" (63mm) x 1" (25mm)

All-in-one pre-wired electric guitar pickup harness for 4-string instruments

Great inexpensive way to add a magnetic pickup to cigar box guitars!

Rated at 4.25KOhms resistance for that nice growling tone

No soldering required & easy to install - mounting screws included

Hard wood laser cut bobbin top and bottom
