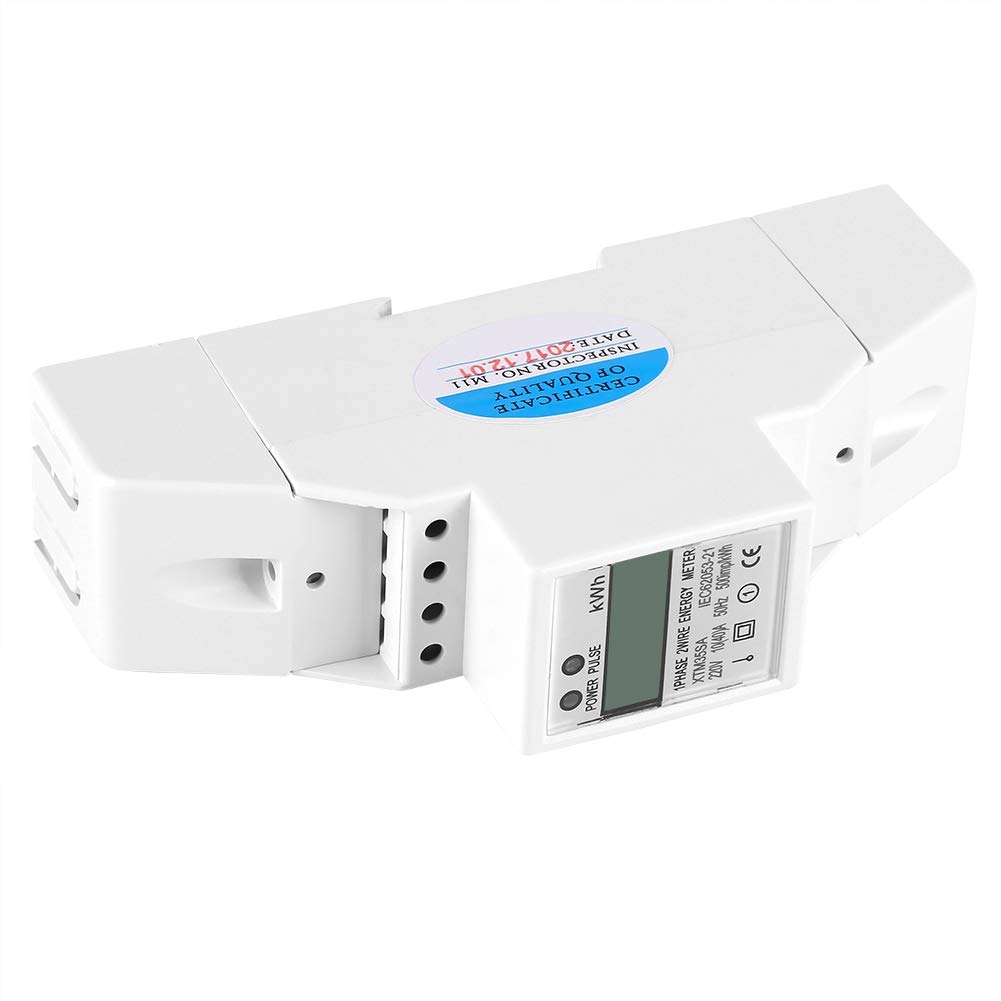

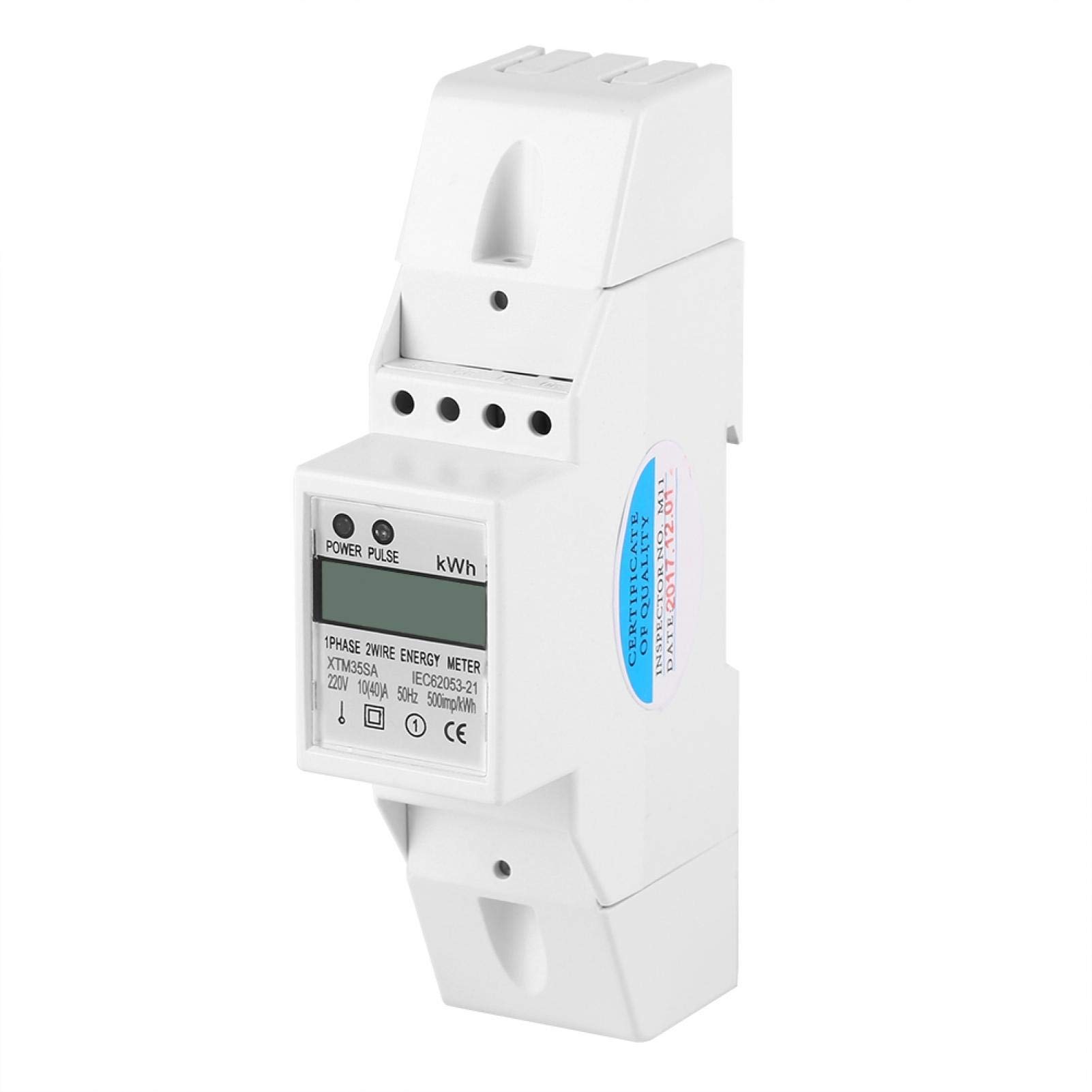

Digital LCD Single Phase Electric Meter - DIN Rail Mount KWH Meter for Active Energy Measurement | Home & Industrial Power Monitoring Solution

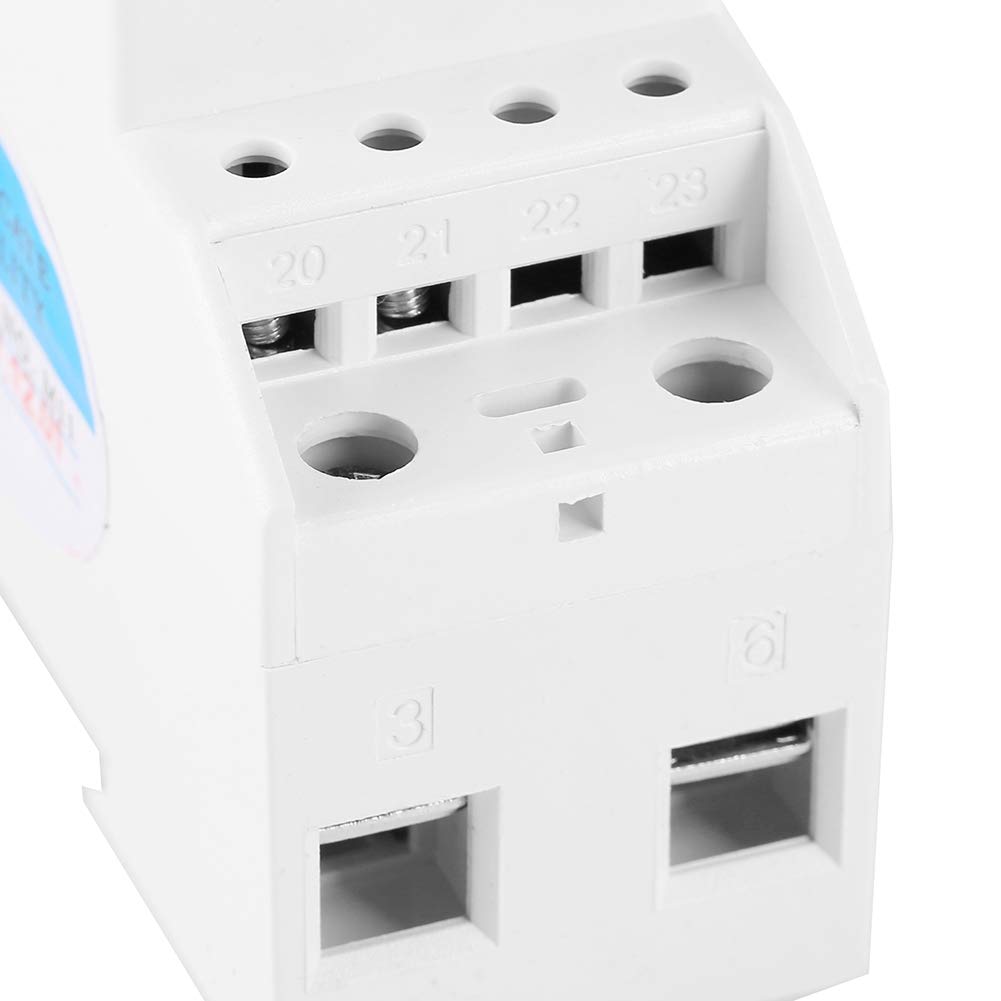

Specification:Phase number: single phaseType: typeDisplay mode: LCDReference current: 10(40)ARated voltage: 220VStandard voltage: 120 / 230V ACOperating voltage: 84-156V AC / 161-300V ACInsulating capacity:AC voltage withstand: 4KV for 1 minuteImpulse voltage withstand: 6KV - 1.2μS waveformOperational current range: 0.04A-60A/ 0.08A-100AOver current withstand: 1800A/ 3000A for 0.01sOperational frequency range: 50Hz ±10%Internal power consumption: ≤2W/ 10VATest output flash rate (RED LED): 500 impulses per kWhPulse output rate (pins 20 & 21): 500 pulses per kWhPower supply indicator (Green LED): Meter is connected to 120 or 230V/50HzConsumption indicator (RED LED): Flashing on loadBacklight LCD display: 7+1 digitsMaximum cable capacity: 25mm²Operating humidity: ≤85%Storage humidity: ≤95%Operating temperature: -10℃ - +50℃Storage temperature: -30℃ - +70℃Accuracy class: 1 level: IP53Color: WhiteSize: Approx. 14 x 7 x 3.2cm / 5.5 x 2.7 x 1.2inchWeight: 179gPackage Included:1 x Din-rail Energy Meter

[Measure the Consumption of Active Electric Energy] This electric meter is mainly used to measure the consumption of active electric energy

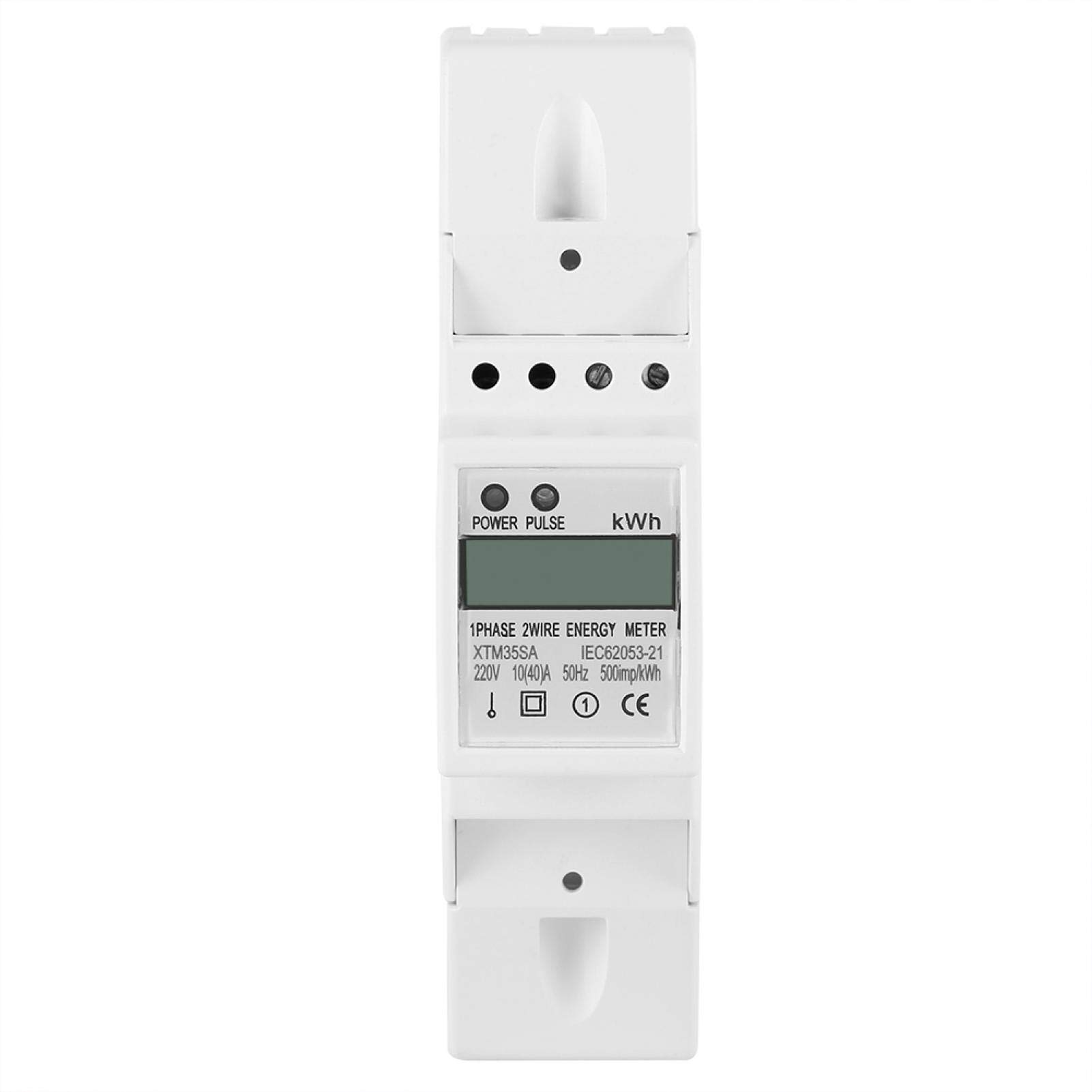

[7 + 1 Digit Display] The LCD of this single phase electric meter can clearly display the total power consumption and can display 7 + 1 digits

[Anti-electromagnetic Interference] This din-rail electric meter electronic KWH meter has good anti-electromagnetic interference performance, which can effectively reduce power consumption and prevent electricity theft

[High Reliability] This digital LCD energy meter din-rail has high reliability, its accuracy is high, and it can withstand high overloads

[Scope of Application] This electric consumption meter is suitable for the measurement of single-phase AC active energy with a rated frequency of 50 Hz
