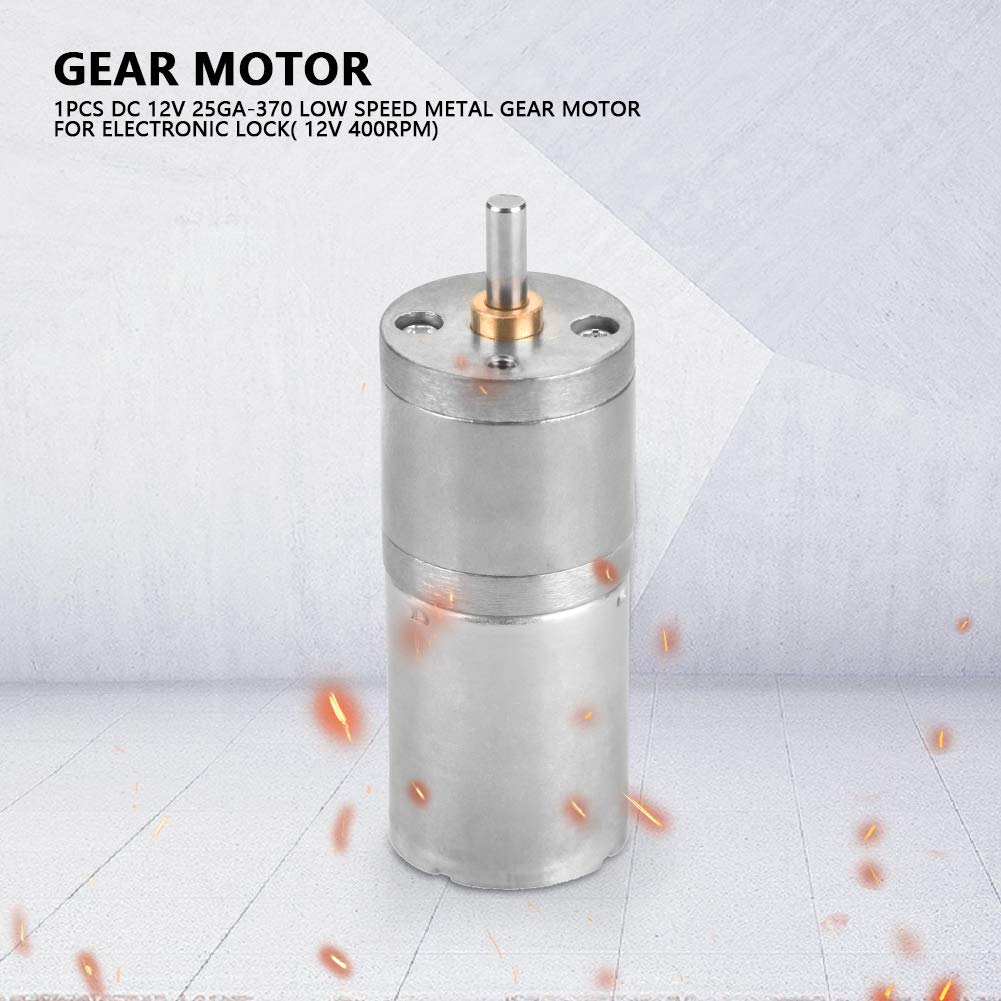

12V 400RPM High Torque DC Gear Motor - Metal Geared Reduction Motor for Electronic Locks, Smart Curtains, Automatic Doors | Perfect for Home Automation & DIY Projects

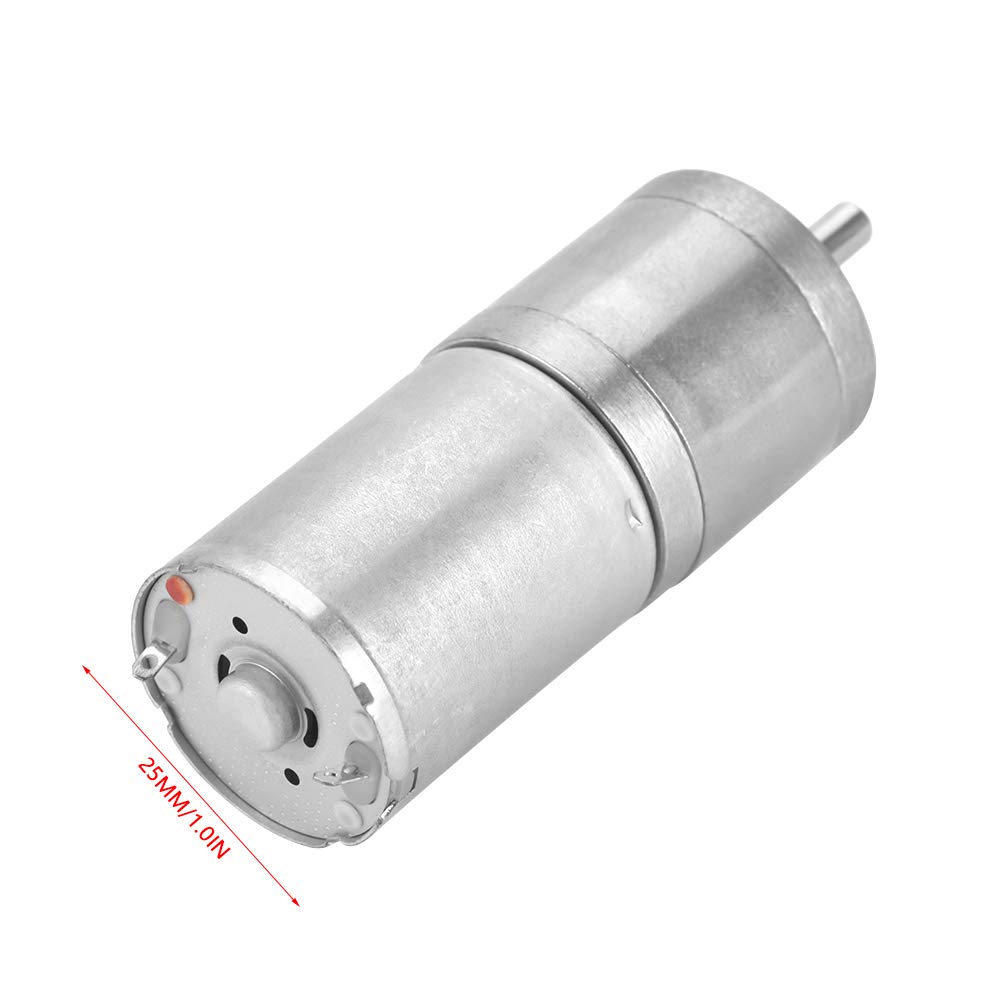

Features: This product is a DC gear motor with high precision metal gear, stable working This DC motor features large moment of force, low speed, and low noise. The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life. This motor is adopted of pure copper wire coil, with low heat and low loss. Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine Specification: Model: GA25YN370 Rated power: 3.5 (W) Product type: Brush dc motor Rated voltage: 5-12 (V) Rated current: 0.06 (A) Type(Optional): 12V 5RPM, 12V 10RPM, 12V 30RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM, 12V 300RPM, 12V 400RPM, 12V 500RPM, 12V 1000RPM Outer diameter: 25 mm/1.0in Shaft diameter: 4mm / 0.2in Shaft length: 10 mm/0.4in Weight: 96g/3.4oz VoltageGear ratio no loadloadStallspeedCurrentspeedCurrenttoqureCurrenttoqure12V1:6505RPM≤150MA3RPM≤70MA1150gf.cm≤2.1A15.4kgf.cm12V1:15010RPM≤170MA7RPM≤100MA980gf.cm≤2.1A14.8kgf.cm12V1:15030RPM≤170MA25RPM≤100MA770gf.cm≤2.1A12.0kgf.cm12V1:20060RPM≤170MA51RPM≤100MA750gf.cm≤2.1A11.8kgf.cm12V1:100100RPM≤150MA73RPM≤185MA660gf.cm≤2.1A10.5kgf.cm12V1:50200RPM≤180MA165RPM ≤105MA580gf.cm≤2.1A8.8kgf.cm12V1:30300RPM≤190MA254RPM≤145MA180gf.cm≤2.1A7.8kgf.cm12V1:25400RPM≤190MA344RPM ≤145MA170gf.cm≤2.1A7.7kgf.cm12V1:20500RPM≤190MA460RPM ≤145MA150gf.cm≤2.1A7.5kgf.cm12V1:101000RPM≤190MA820RPM ≤145MA88gf.cm≤2.1A7.2kgf.cm Package list: 1 x gear motor

High-quality materials Geared motor, made of high-quality metal, good toughness, impact resistance, bearing quality and the service life of the geared motor have been improved, and it is extremely durable

Features DC geared motor has high transmission accuracy, small size, low noise, durability, low energy consumption, customized power design, easy installation and easy maintenance

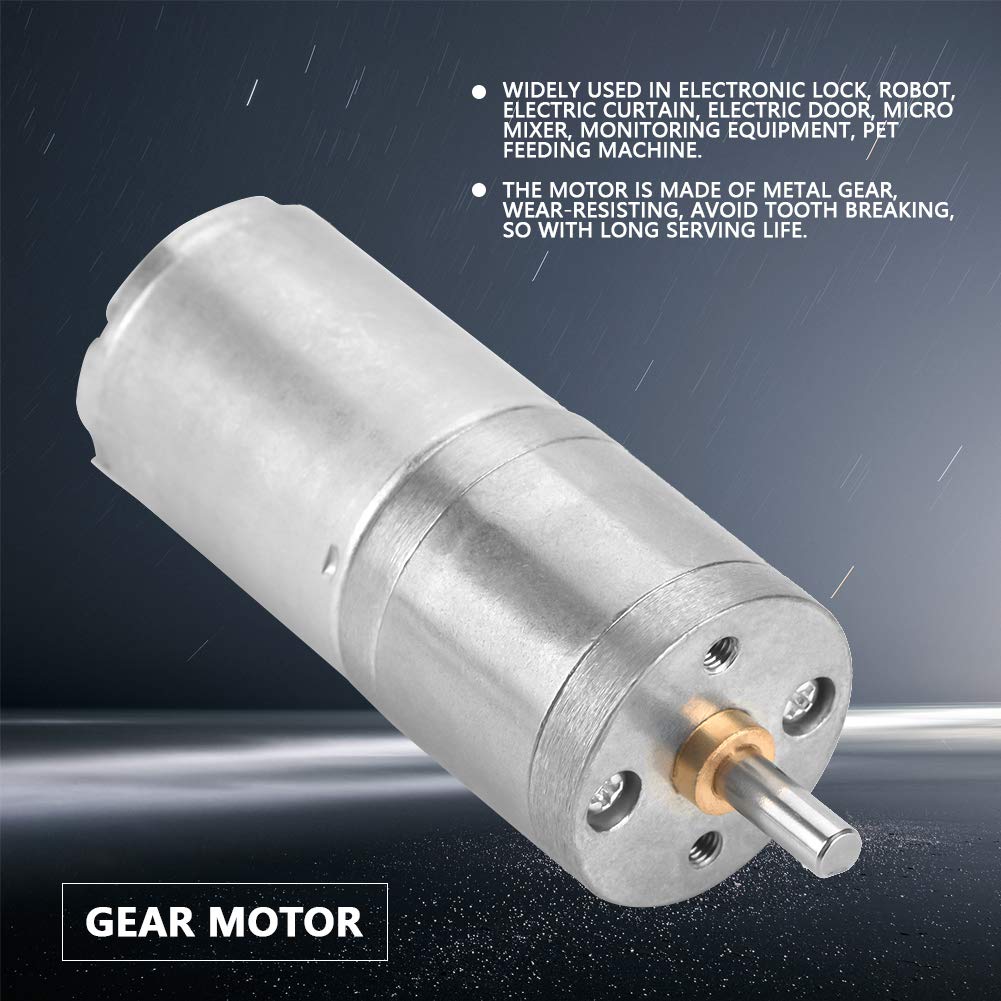

Applicable Scope Widely used in an electronic lock, robot, electric curtain, electric door, micromixer, monitoring equipment, pet feeding machine Service

Small and convenient Motor gear box accessories, small and light appearance, stable performance, quick and convenient installation and disassembly, space saving, relatively light weight, simple operation
