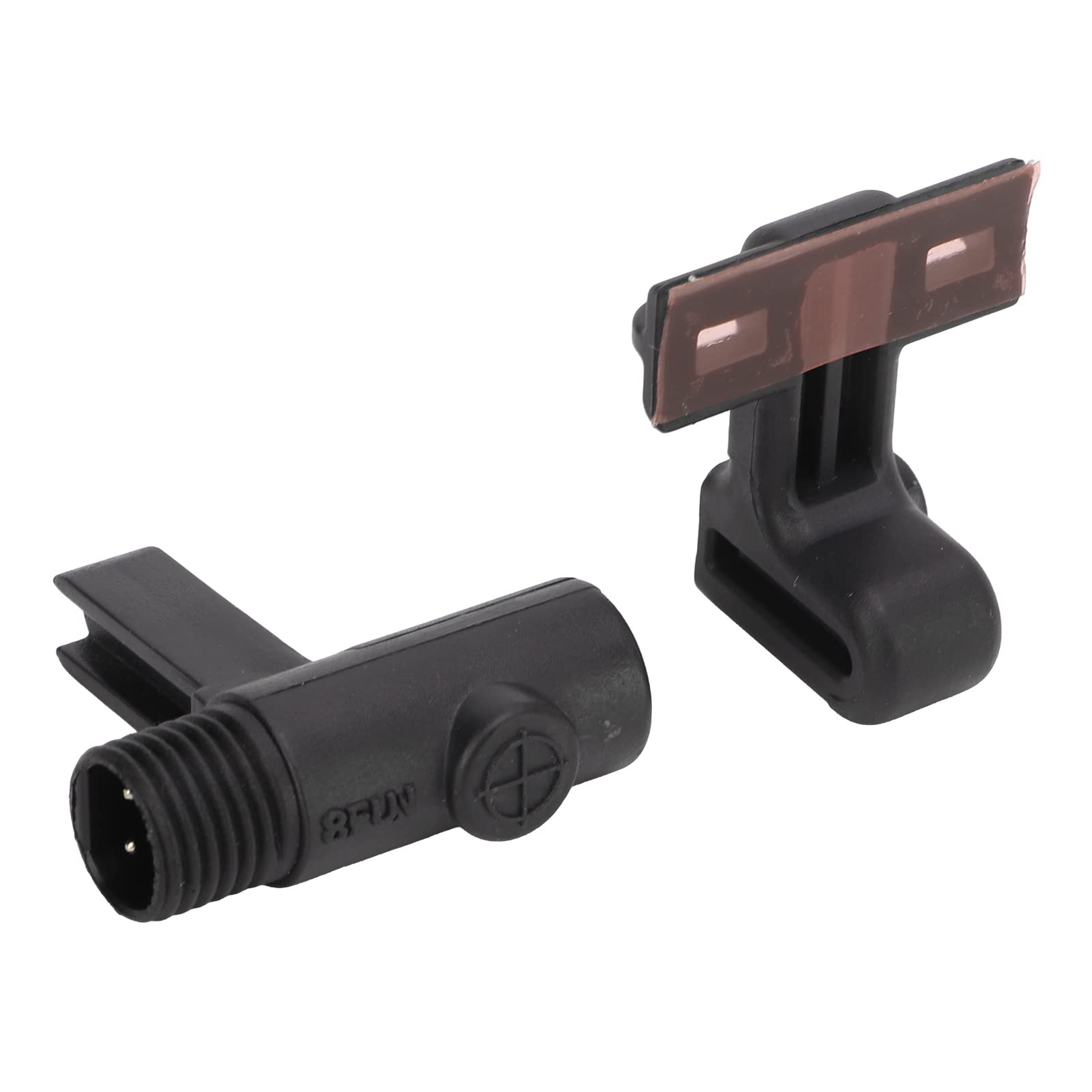

BRDI High Sensitivity Electric Speed Sensor - Anti Electromagnetic Interference Mid Motor Sensor for E-Bikes & Scooters | Perfect for Commuting & Outdoor Adventures

Specification:Item Type: Mid Motor Speed SensorMaterial: Plastic, MagnetInterface Type: 3pinNumber of Pulses (Pulse/Cycle): 2 PlueRated Input Voltage (DcV): 4.2-5.5Operating Temperature: Minus20 to 45°CInstallation Location: FrameOutlet Length (mm), Wiring Type: G4.3Sensing Distance (mm): Approx. 5mm / 0.2inWaterproof Grade: IP65Size: Approx. 35-45mm / 1.4-1.8in, Approx. 32mm / 1.3inHow to Use:Mounting bracket and speed sensor assembly, installed in frame position, magnet block stuck in the wheel spokes, fixed with screws, speed sensor assembly fixed with screws, sensor and magnet block to adjust the distance position, and fixed. Speed sensor can be fixed with a tie or wire rope tied to frame (Note: tie or wire rope, the product does not come with, need to be provided by the customer).Package List:1 x Speed Sensor1 x Mounting Bracket1 x Magnet Block1 x Screw1 x Boult

IP65 Waterproof: IP65 waterproof, dustproof, easy to install, easy to use, easy to install and won't cost you too much time.

IP65 Waterproof: IP65 waterproof, dustproof, easy to install, easy to use, easy to install and won't cost you too much time.

IP65 Waterproof: IP65 waterproof, dustproof, easy to install, easy to use, easy to install and won't cost you too much time.

Anti Electromagnetic: Mid motor speed sensor data measurement is reliable, ranging from 2‑5mm, anti electromagnetic, anti vibration.

High Sensitivity: Magnet speed sensor, high sensitivity, stable output amplitude, can be used for a long time.

3pin Interface: Mid motor speed sensor adopts 3pin interface, Minus20 to 45°C working temperature, easy to use and fast, stable performance.

Accurate Support: Motor speed sensor is small in size, but the speed sensor can provide accurate support for the entire system.
