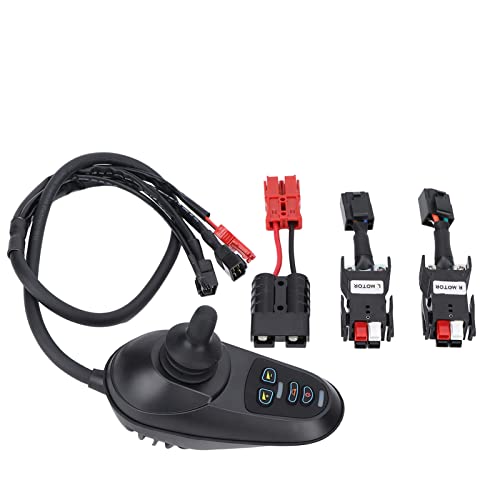

Electric Wheelchair Joystick Controller Replacement - 24V DC 0-50A Brushed Motor Joystick for Power Wheelchairs - Perfect for Home Use, Outdoor Mobility & Daily Commuting

How to Use: 1. Power on/off: Press this key to turn on the power, the battery indicator light turns on, the controller system enters the startup procedure, press this key again to turn off the power, and it needs to be pressed for more than 0.5 seconds to prevent misoperation. 2. Deceleration key: reduce the maximum speed of driving, press once to reduce the speed by one gear, and the speed is displayed as the current speed gear. 3. Accelerator key: increase the maximum speed of driving, press once to increase the speed by one gear, and the speed will be displayed as the current speed gear. 4. Joystick: Control the speed and direction of driving and parking. The direction of the joystick is the same as the direction of travel, and the joystick is naturally released (in the middle position) to stop running. 5. Horn key: Horn whistle/buzzer beep Specification: Item Type: Joystick Controller Material: ABS Brake Voltage: 24VDC Brake Current: 300-3000mA Charging Current: 6A Maximum Waterproof Grade: IPX5 electronic equipment Operating Temperature: -25°C to +60°C Storage Temperature: -40°C to +80° Applicable Drive Motor Form: 24V DC brush motor Scope of Application: Electric wheelchairs, intelligent robots, amusement equipment, bar cars, remote control car, monitoring and operation platforms for various mobile products Package List: 1 x Joystick Controller 1 x Manual 2 x Connector 1 x Power Connector

Fast Heat Dissipation: The lower shell is all aluminum with heat dissipation , which has fast heat dissipation, anti collision and long service life.

Smooth Speed Change: The Joystick controller starts smoothly, accelerates and decelerates softly, and the speed change is smooth without sudden stop feeling.

Professional: 0‑50A output current, suitable for various 24V brushed DC motors, good wear resistance, not easy to corrode, and safe to use.

High Safety: EABS has the function of parking on the slope, it can stop when you let go, high safety, and the controller can adjust the speed.

Good Compatibility: Joystick controller can be adapted to major wheelchair brands, with good compatibility, easy installation, and can be directly installed and removed.
