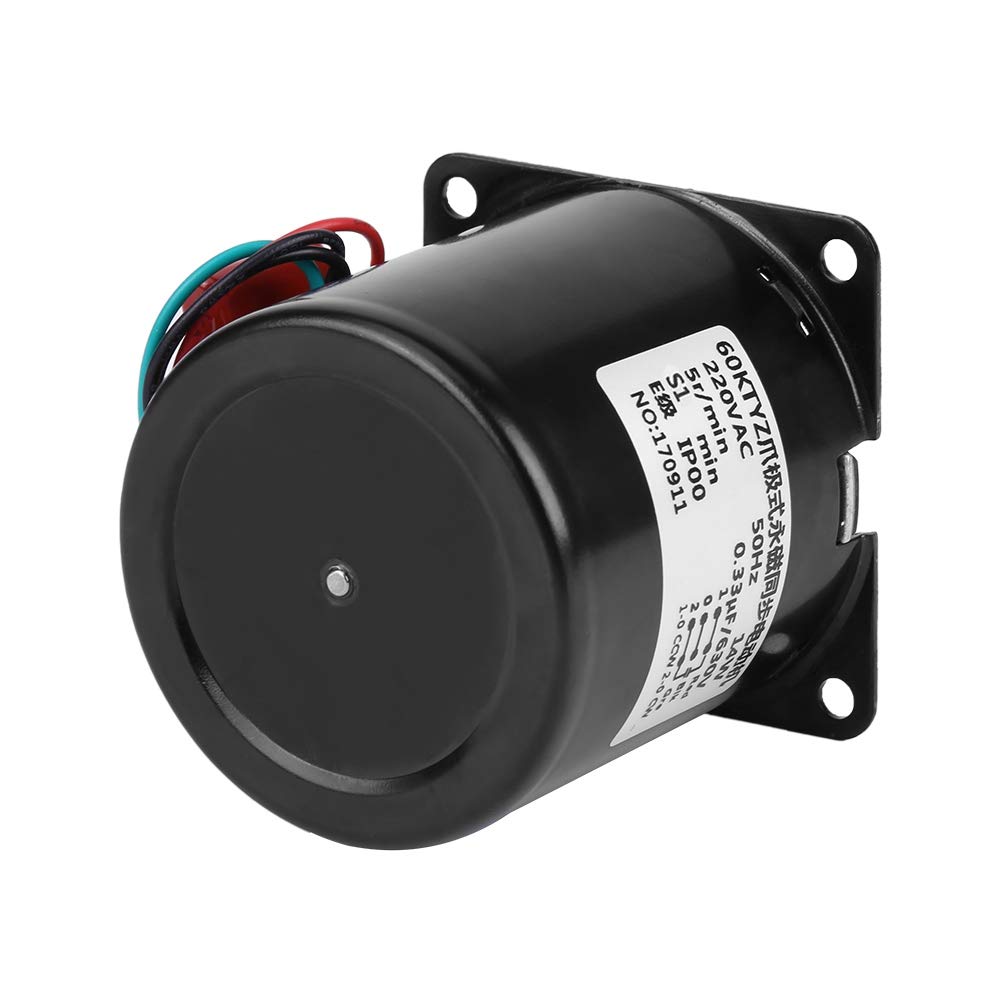

220V Synchronous Gear Motor 60KTYZ - 5R/Min Replacement for Electric Advertisement & Screen Machine - Perfect for Display Rotators, Signage, and Automated Screens

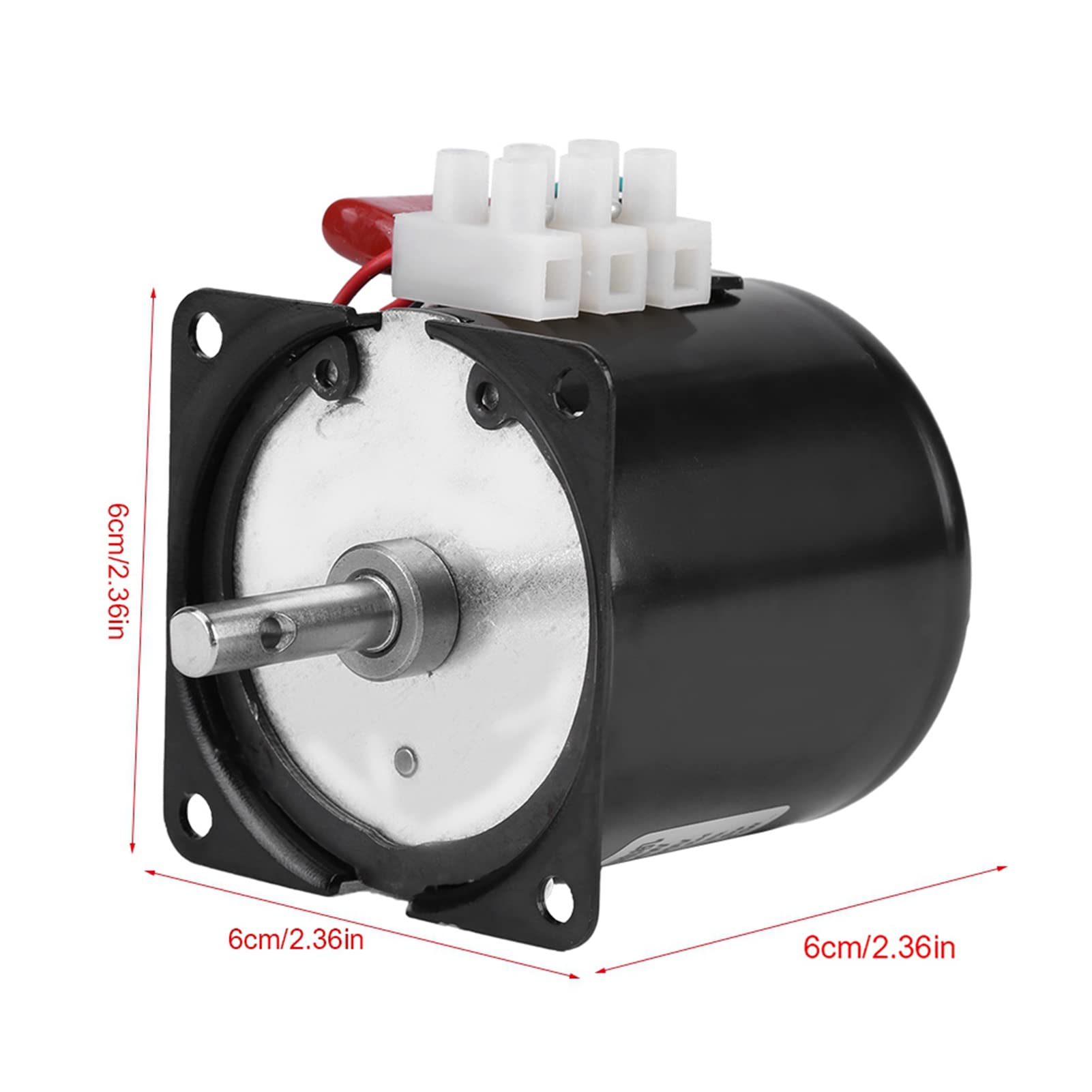

Working Principle If the frequency of the grid is constant, then the steady-state synchronous motor speed constant and independent of the size of the load. Specifications: Models 60 ktyz Rated power 6-100 (W) Rated voltage 220 (V) Product type permanent magnet synchronous motor Rated current 0.02-0.8 (A) Rated torque 45Kg.cm(5R/Min)),15Kg.cm(15R/Min),4Kg.cm(60R/Min),1.5Kg.cm(110R/Min) Size Approx. 6 x 6 x 6cm/2.36 x 2.36 x 2.36inch Product certification CCC Efficiency 32 (%) Weight 525g Speed(Optional) 5R/Min,15R/Min,60R/Min,110R/Min Package Included 1 x 60KTYZ synchronous motor

【Specifications】 60 ktyz, Rated power 6-100 (W), Rated voltage 220 (V), Product type permanent magnet synchronous motor, Rated current 0.02-0.8 (A)

【Wide Use】The synchronous motor is mainly used in double power switch, electric advertisement, mahjong table, electric screen machine, over-molding machine, counting machine, barbecue equipment

【Advantage】Regardless of the size of the load, as long as the step does not lose speed will not change. The electric synchronous motor is a great replacement for the damaged motor

【Working Principle】If the frequency of the grid is constant, then the steady-state synchronous motor speed constant and independent of the size of the load

【Steady-state Operation】The ac synchronous motor has steady-state operation, the rotor speed and grid frequency has a constant relationship between n=ns=60f/p, ns known as the synchronous speed
