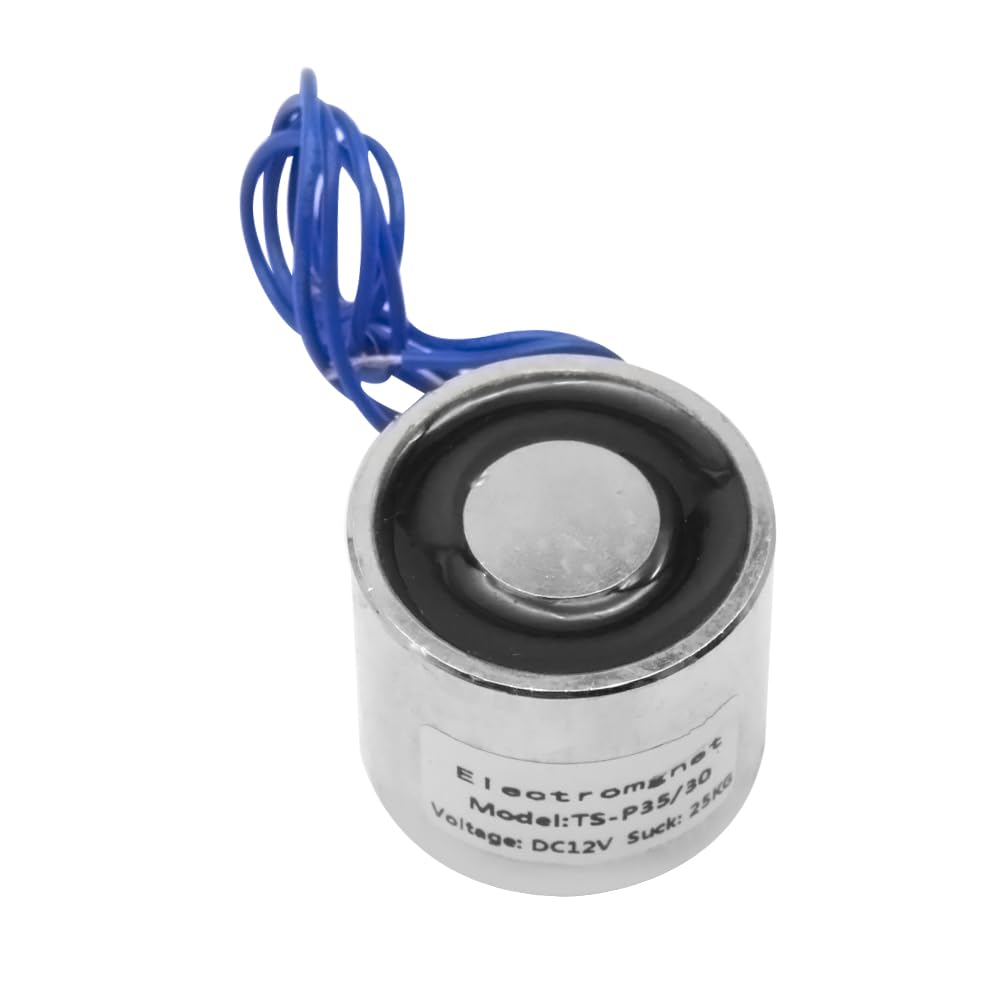

35x30mm Round Electric Solenoid Lifting Magnet - 250N DC 12V Electromagnet for Industrial Automation, CNC Machines & Material Handling Equipment

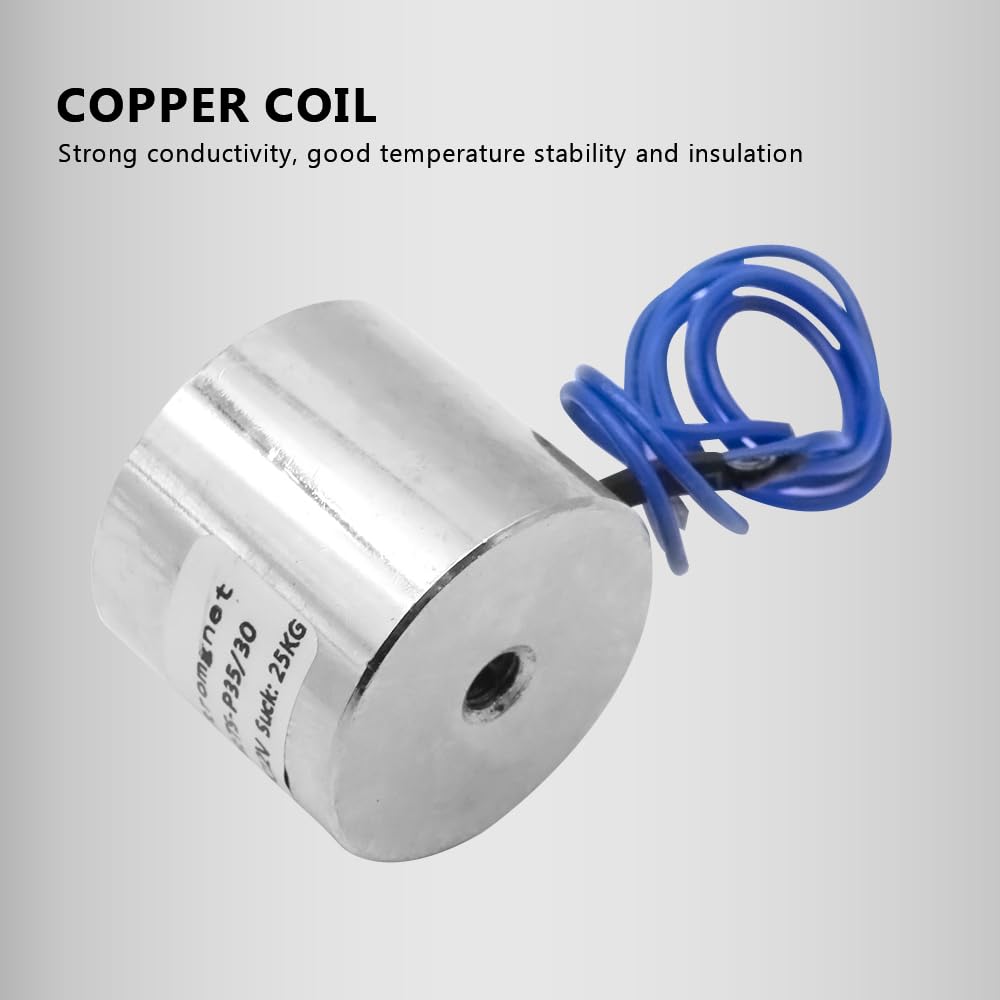

PRODUCT PARAMETER Brand：TOMSHIELE Voltage：DC12V/24V Shape：Round Color：Silver Material：Metal & magnetic material Packing List：1*Electric Lifting Magnet Electromagnet Solenoid Note：Suction power will be reduced due to long working hours, lower voltage, improper suction of objects, etc. Smooth surface electrotechnical pure ironstrong suction,small power consumptionno residual magnetism after power failure Purple copper coil strong conductivitygood temperature stability and insulation Mounting holes screw mounting,easy to dismantlesafe and reliable,firm and durable Insulated wire high temperature resistancecan withstand high tensile forcenot easy to fall off and break the wire

【Specification】 Voltage12V; ModelTS-P35/30-DC12V; Power consumption3W; Peak force250N; Suction25kg

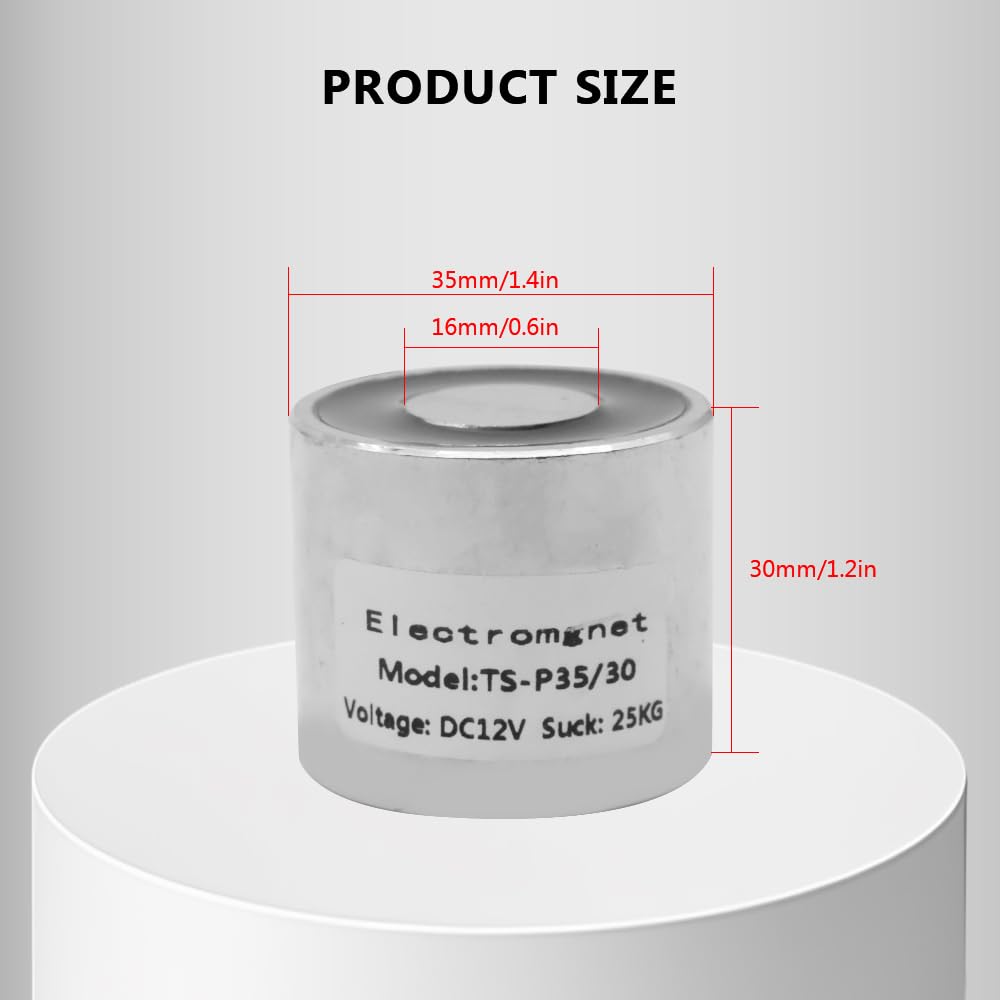

【Size】 35 x 30 mm / 1.37 x 1.18 inch; Thread size M4*6; Lead length 24cm/9. 5 inch

【Features】 Solenoid electromagnet is made of high quality enamelled wire, small size for easy storage, strong adsorption, high conductivity, high temperature resistance

【Application Scenario】 Suitable for transport equipment, office facilities, experimental equipment, household appliances, vending machines, sorting machines, assembly lines, robotic arm field, etc

【Note】 Electromagnetic conversion in the working state will produce heat, the more frequently energised, the higher the temperature, and must be in contact with the object when in use, otherwise there is no suction
