CHANCS 895 DC Electric Motor 12V/24V 6000-12000 RPM High-Speed Power Tool for Sawing, Cutting & DIY Projects - Perfect for Woodworking, Metalworking & Home Improvement

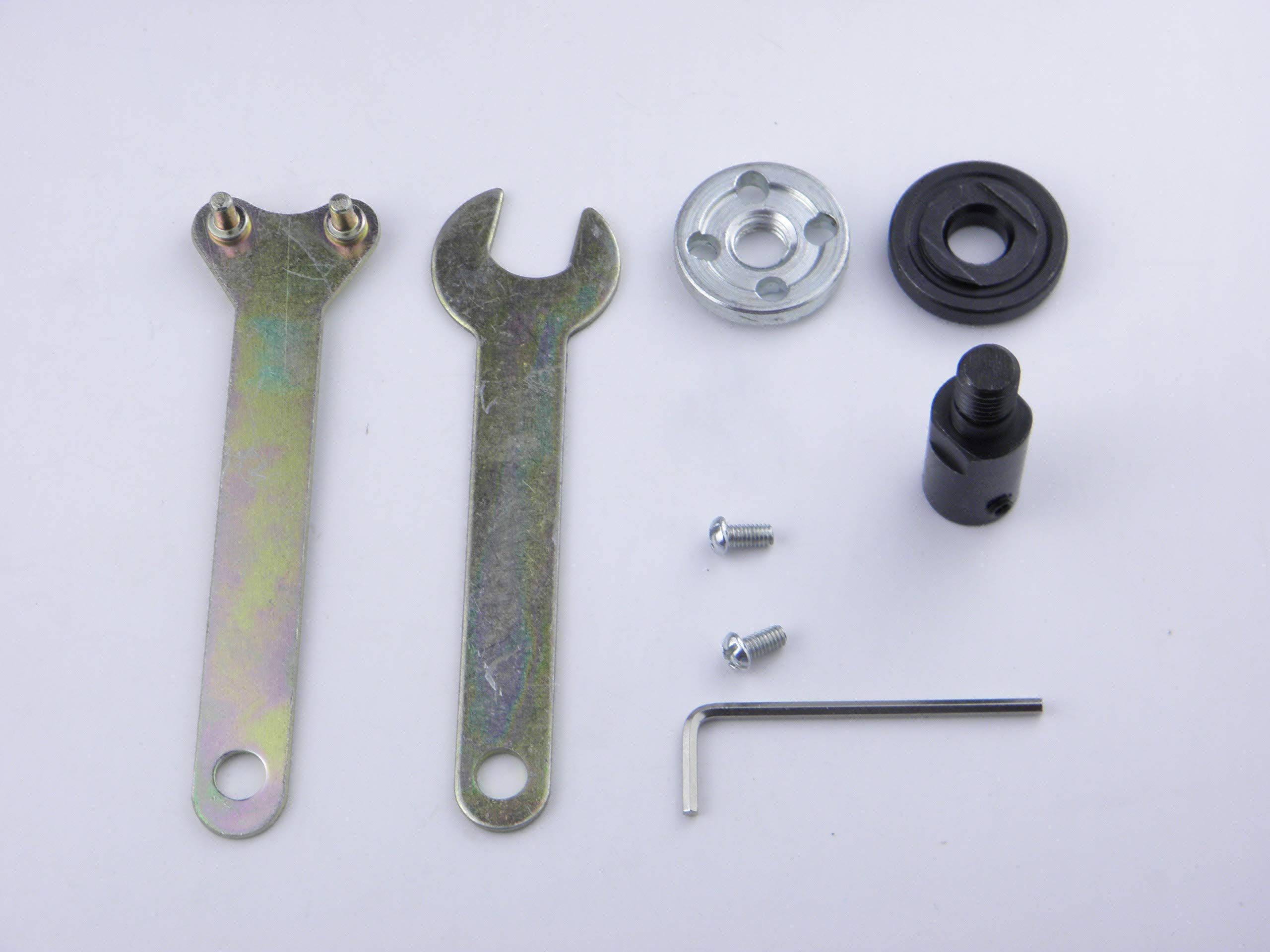

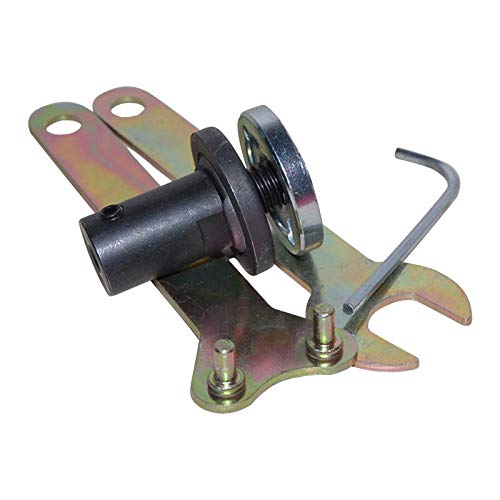

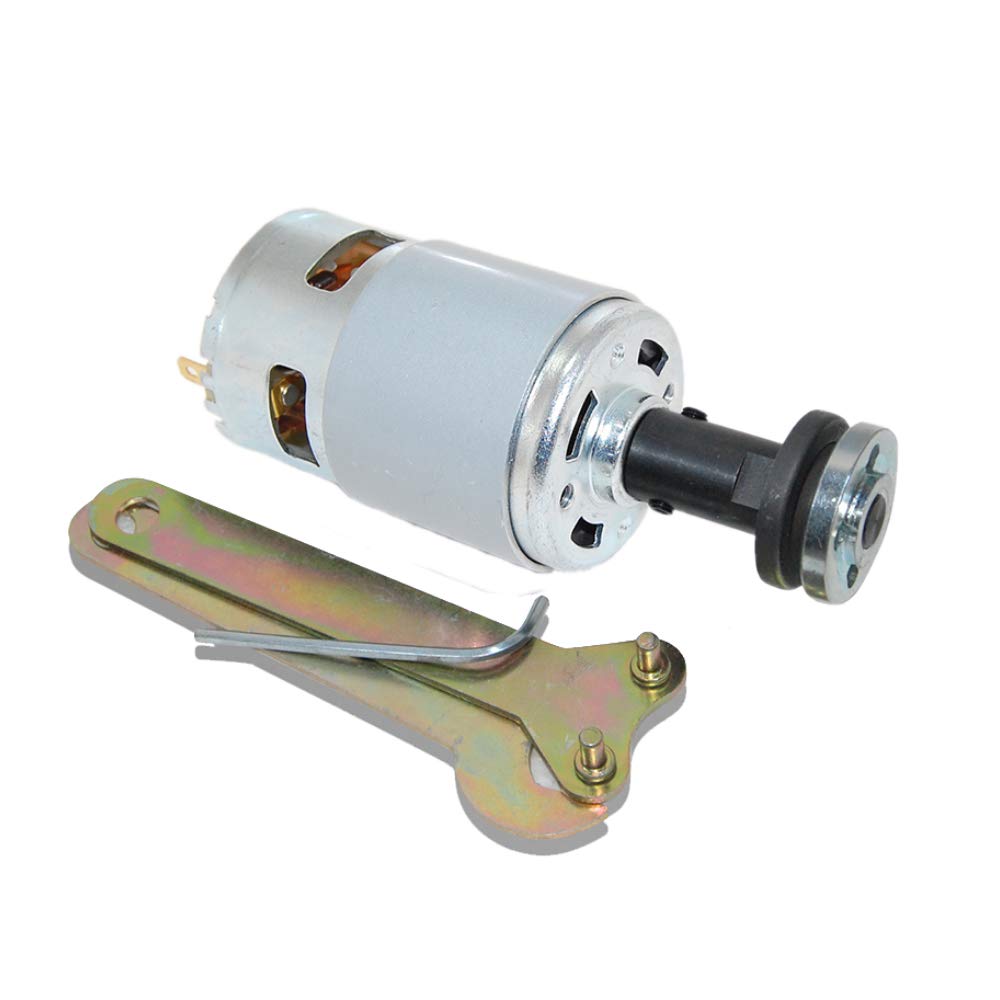

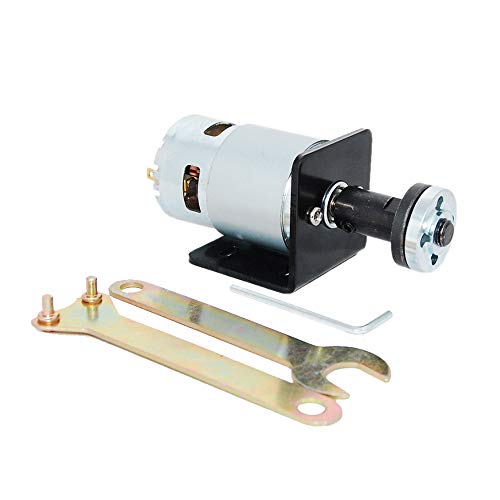

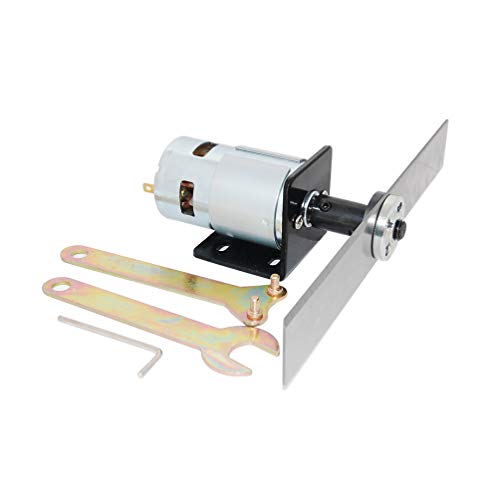

*This is a DIY combination of motor and saw balde connecting rod，can be used with a saw blade to become a mini saw. *Type: 895 DC Motor; Rated voltage: 12V, No-Load Speed: 6000 RPM; Rated voltage: 24V; No-Load Speed: 12000 RPM; Torque:≤7.8Kgf.cm; No-load current: 0.9A; Power：150W； Shaft Diameter: 5mm; Shaft length: 16mm; Length：72mm; Width: 48mm; *Application: Wide applied to electric tools, electric fans, electric cleaners, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc. *Package: 1PC x DC Motor, 1PC x Saw Balde Connecting Rod, 2PCS x Screws, 2PCS x Matching Hardware Tools. Note: The device is suitable for saw blades with an inner diameter of 16 mm.

*Attention 1.The set can use adjustable speed power supply, or switching power supply. 2.Always disconnect the power when wiring. 3.When installing, please tighten the saw blade and screws so that the saw blade will not fly out and hurt people when the motor starts.

Application Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw for cutting/polishing.

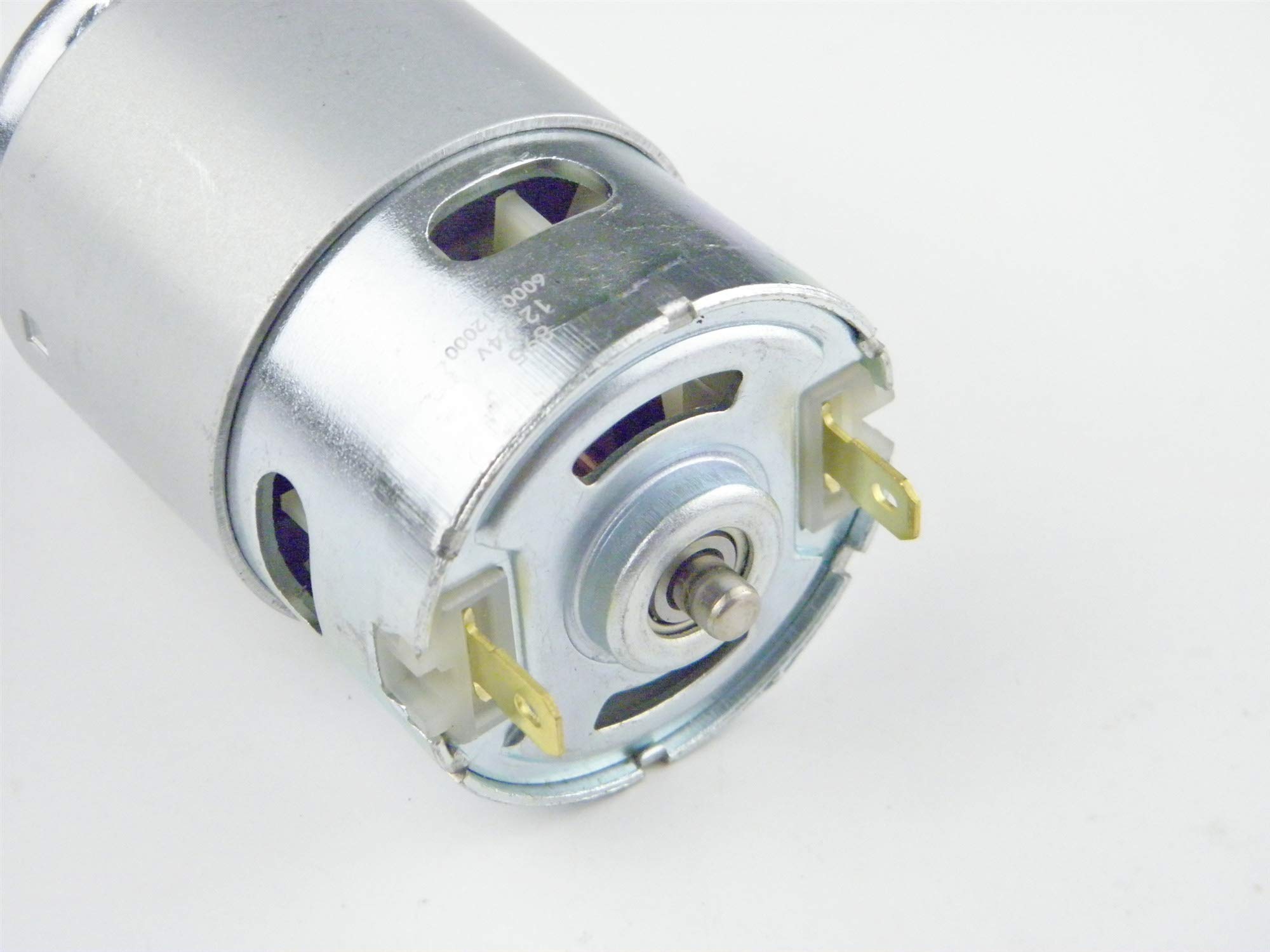

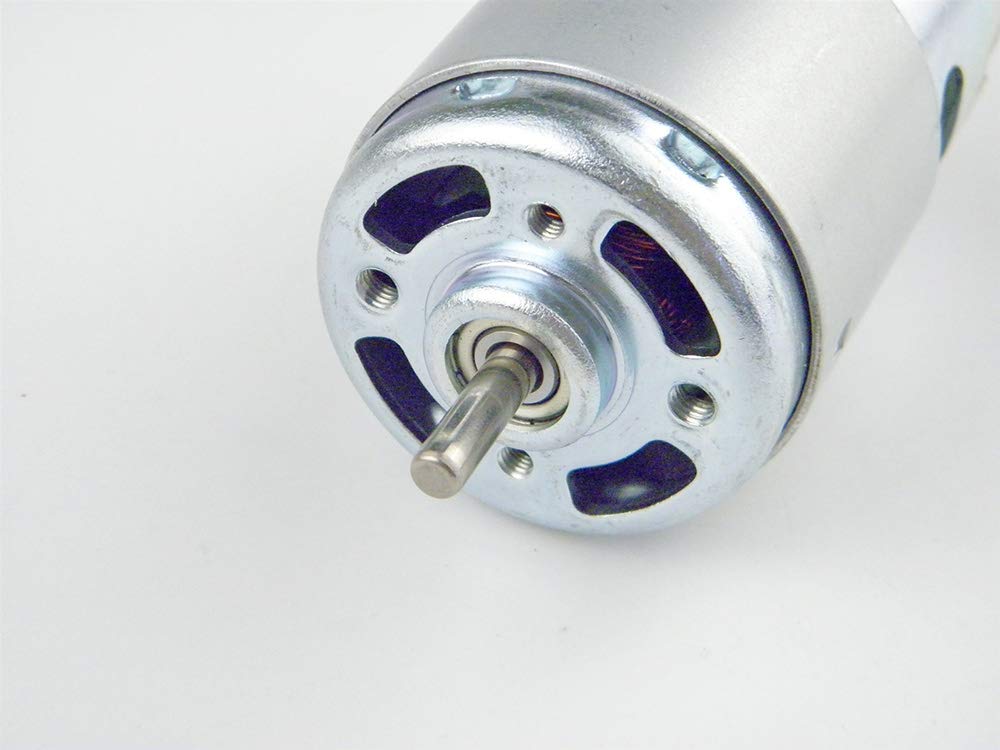

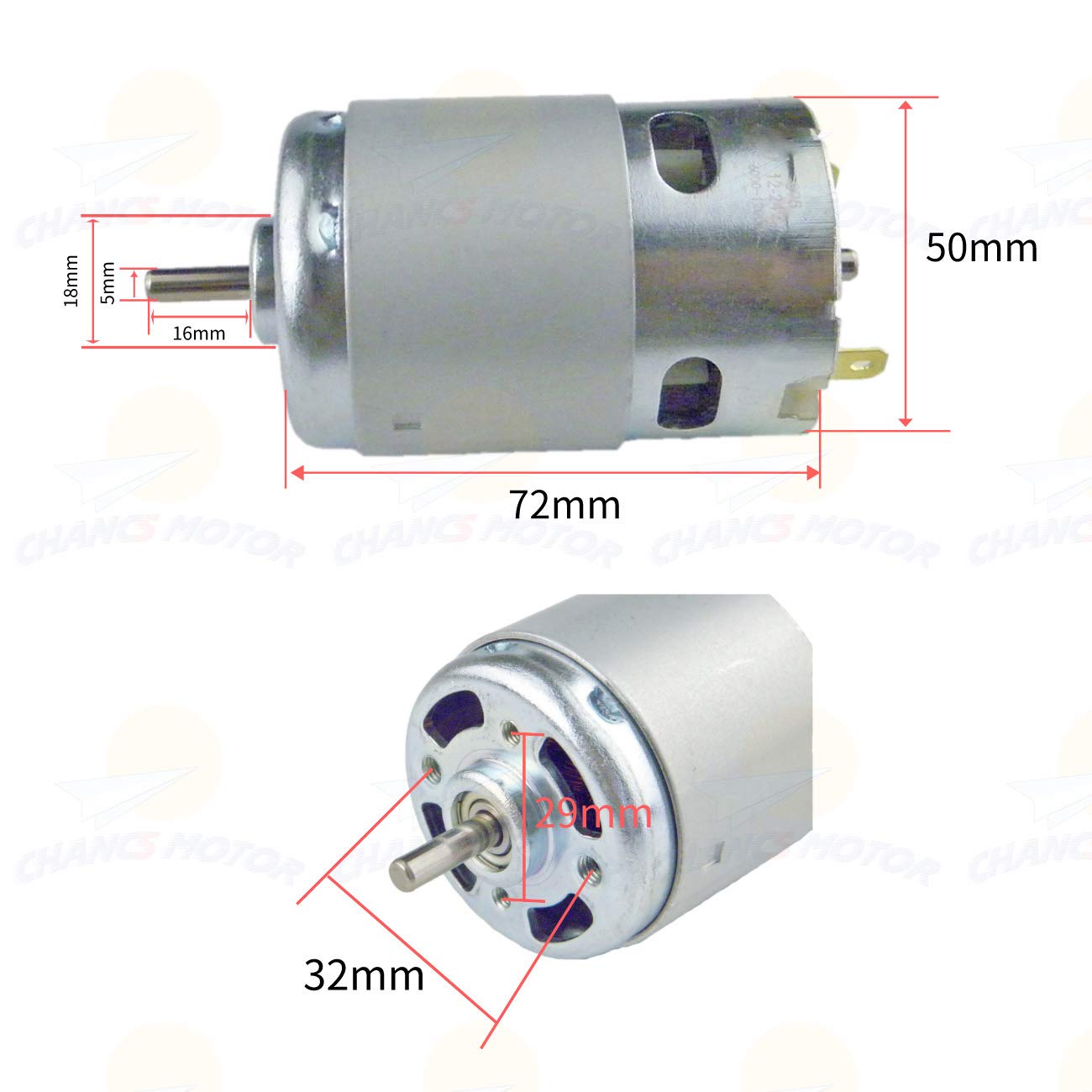

*Specifications of motor Rated voltage DC 24V; No-Load Speed 12000RPM; Torque≤10Kgf.cm; No-load current 0.5A; Power：150W; Shaft Diameter 5mm; Shaft length 16mm; Length：72mm; Width 48mm; Mounting hole distance 29mm(M4 screws)/32mm(M5 screws);

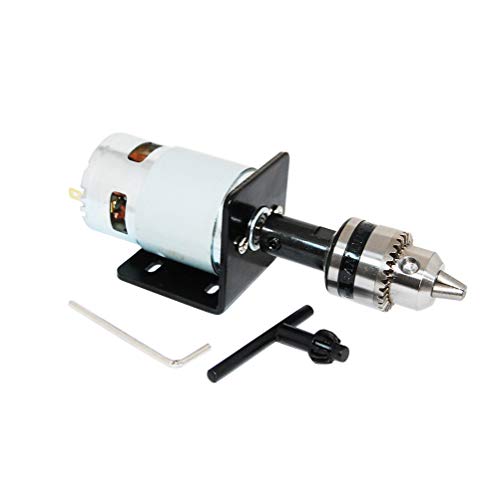

*Slider Size： Total length 159mm(6.26")； Mounting holes for M5 screws； M10 bush is suitable for saw blade with inner diameter 16mm（0.63"）, outer diameter 110mm(4.33"), common with angle grinder. B12 drill chuck clamping range is 1.5-10mm(0.06"-0.39").

*Belt Pulley Size Large pulley 48 teeth, inner diameter 12 mm(0.47"); Small pulley 16 teeth, inner diameter 5 mm(0.2"); Timing belt circumference 240mm(9.45").
