24V Electric Winch with Copper Core - High Conductivity Cable for Trucks, Off-Road Vehicles & Heavy Duty Towing | Perfect for Recovery, Hauling & Construction Work

Specification:Item Type: Electric Winch KitMaterial: Alloy steel, stainless steel, copperTechnical Parameter:Rated Tension: Approx.907kg/2000lbMotor: 0.7kw/1.0hpGear Ratio: 150 to 1Transmission Mode: Planetary transmissionWire Rope Diameter: Approx.4mm/0.2inWire Rope Length: Approx.6m/19.7ftReel Size (Diameter x Length): Approx.31.5x72mm/1.24x2.8inBraking Device: Automatic brakeSize(Length x Width x Height): Approx. 286x100x105mm/11.3x4x4.1inTensionSpeed Current 0Approx. 3.2m/10.5ft per minute8AApprox. 227kg/500lbApprox. 2.8m/9.2ft per minute30AApprox. 454kg/1000lbApprox. 2.2m/7.2ft per minute60AApprox. 680kg/1500lbApprox. 1.6m/5.2ft per minute90AApprox. 907kg/2000lbApprox. 0.9m/2.9ft per minute120ALayerRated TensionWire Rope Length on Reel1Approx. 907kg/2000lbApprox. 1.8m/5.9ft2Approx. 740kg/1630lbApprox. 2.5m/8.2ft3Approx. 627kg/1380lbApprox. 4.0m/13.1ft4Approx. 540kg/1190lbApprox. 6.5m/21.3ft5Approx. 477kg/1050lbApprox. 9.2m/30.0ftPackage List:1 xElectric Winch1 x Controller2 x Screw2 x Nut2 x Washer1 x ManualNote:1. Observe the working environment, do not use in wet places, and do not get wet. Do not use this power tool in flammable gases and liquids.2. Keep away from children, do not let children operate machines, tools or connecting lines.3. Dress correctly, do not wear loose clothing and jewelry that can easily get caught. It is recommended to wear protective, non conductive clothing and slip proof shoes, wear protective hat to hide hair during operation.4. Do not operate tools while taking alcohol and drugs.5. Keep your body and hands away from the fairlead during operation.6. Do not lift objects vertically, the winch can only be used horizontally.7. On the winch reel, the wire rope winding

Large Pulling Force The trailer electric winch has a large pulling force, with a rated pulling force of 2000lb

Alloy Steel Hook The alloy steel hook is quenched at high temperature, which has strong tensile strength, and the external is not easy to rust, the buckle design prevents the hook from slipping off hook

Copper Core Terminal The winch adopts copper core terminal, which is not easy to corrode compared with iron terminal, has good conductivity, low resistance and low heat generation

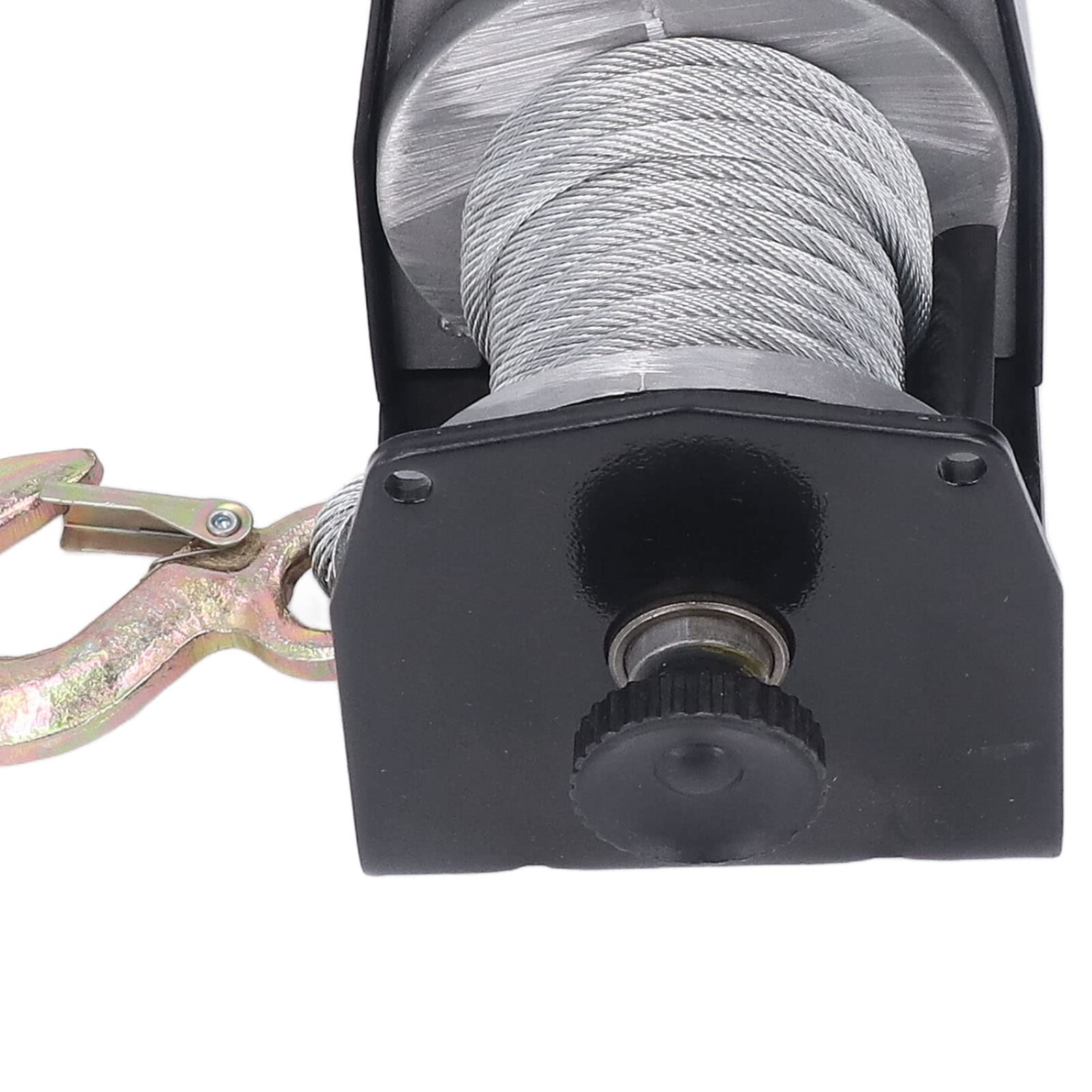

Strong Steel Wire Rope The steel wire rope is wound in multiple strands, which is strong enough, wear resistant and durable

Convenient Usage There is clutching machine on the right side of the machine, the shell can be opened to manually release the rope, which is convenient for use
