Electric Furnace Sequencer with 3 Switches - HVAC Replacement Part for Home Heating Systems - Perfect for Furnace Repair & Maintenance

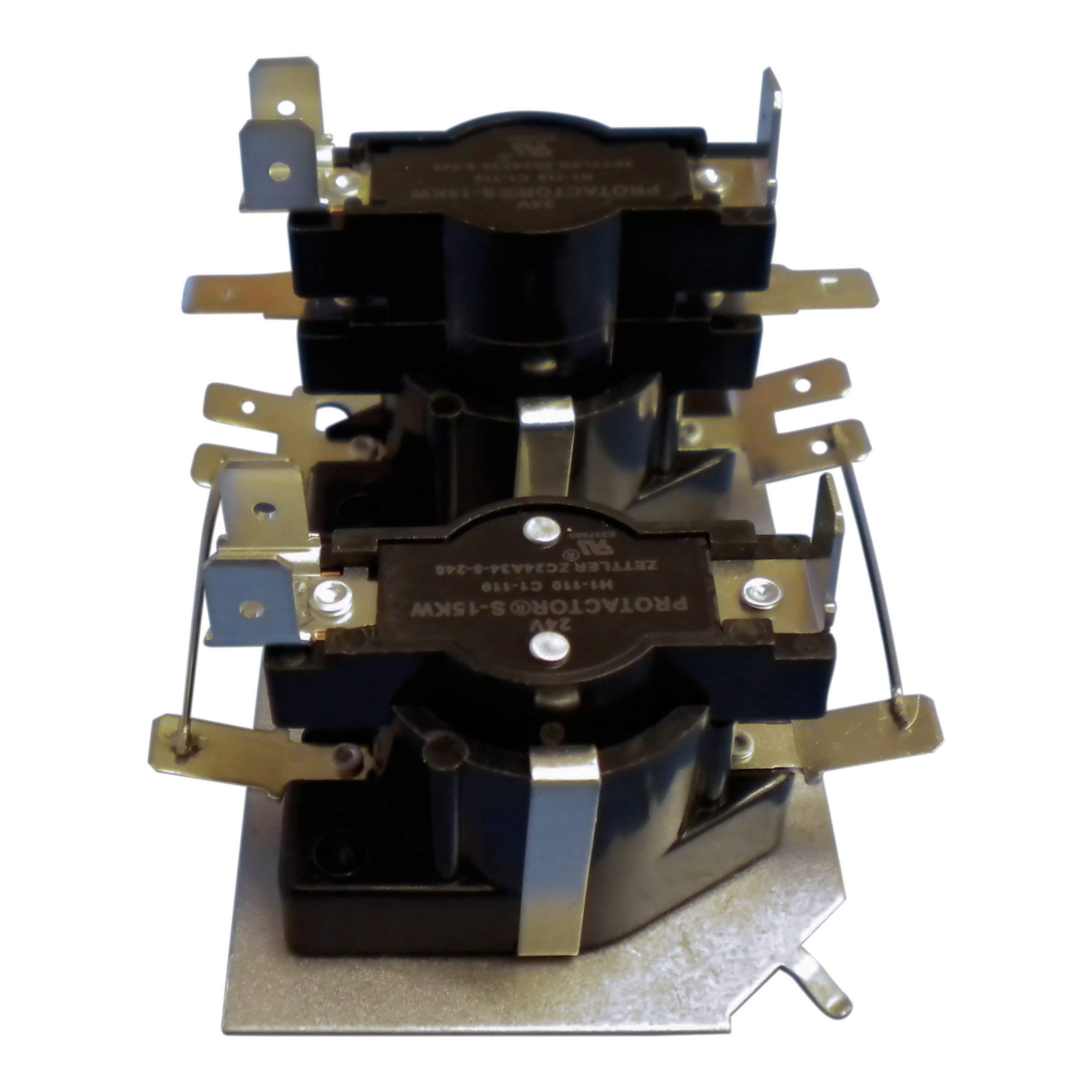

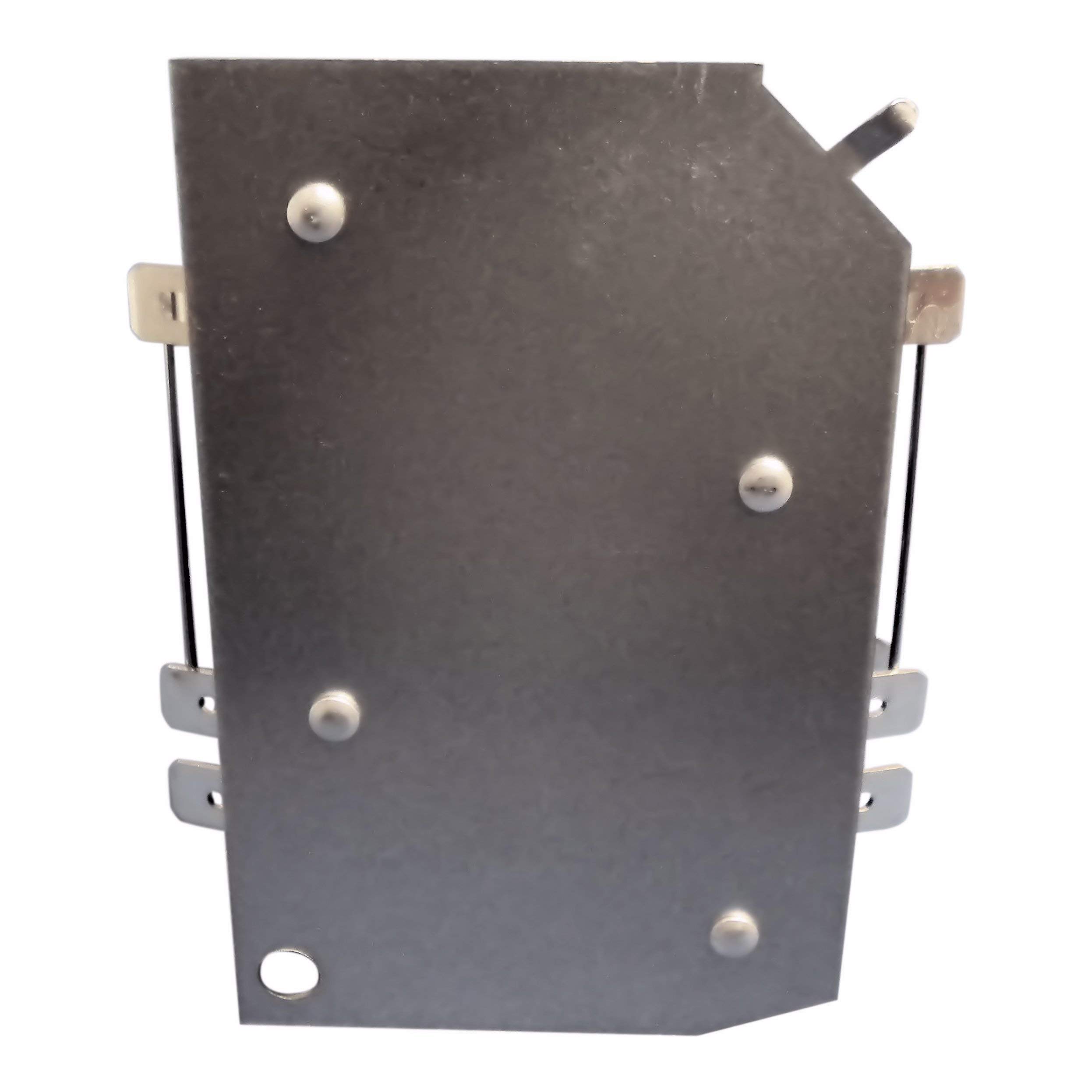

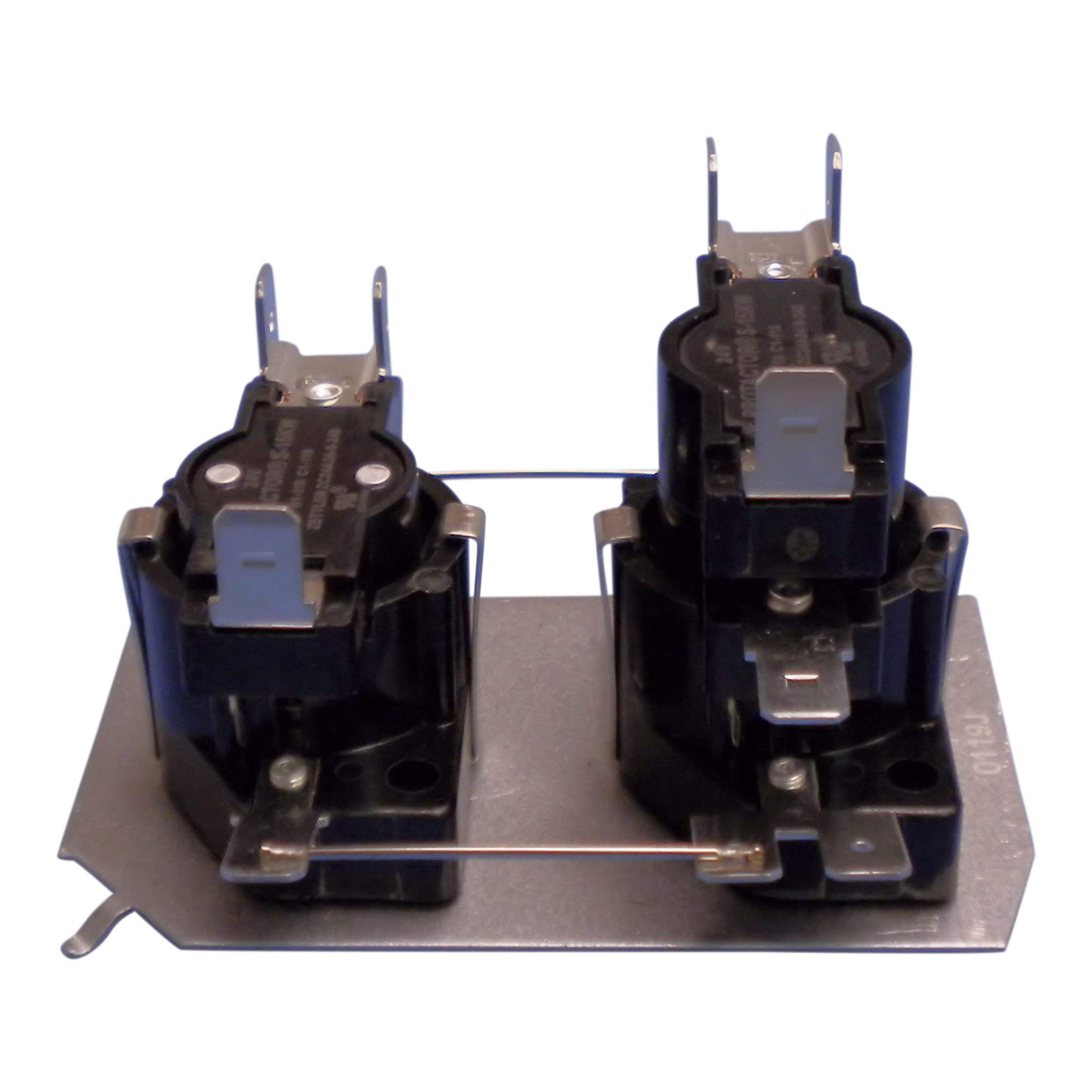

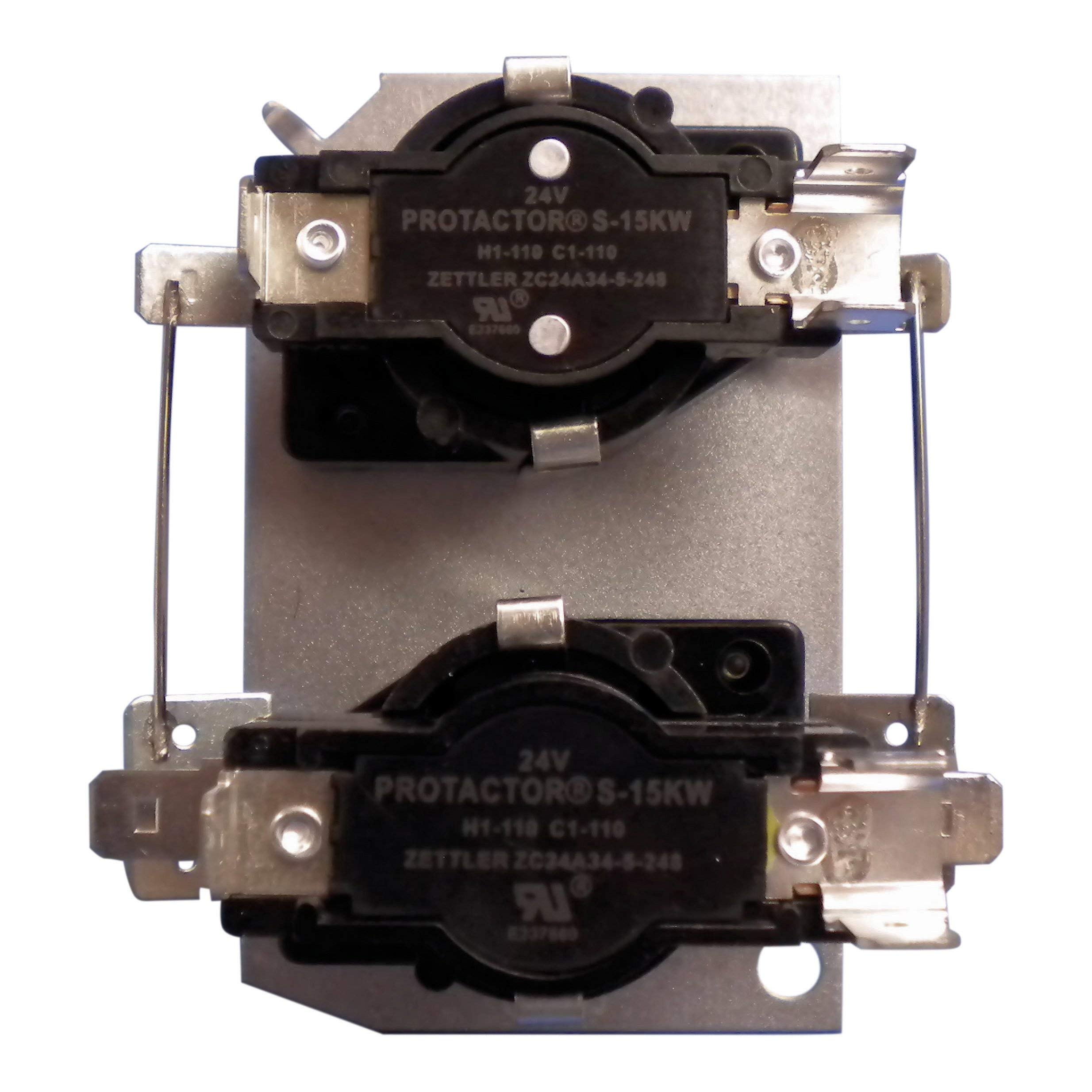

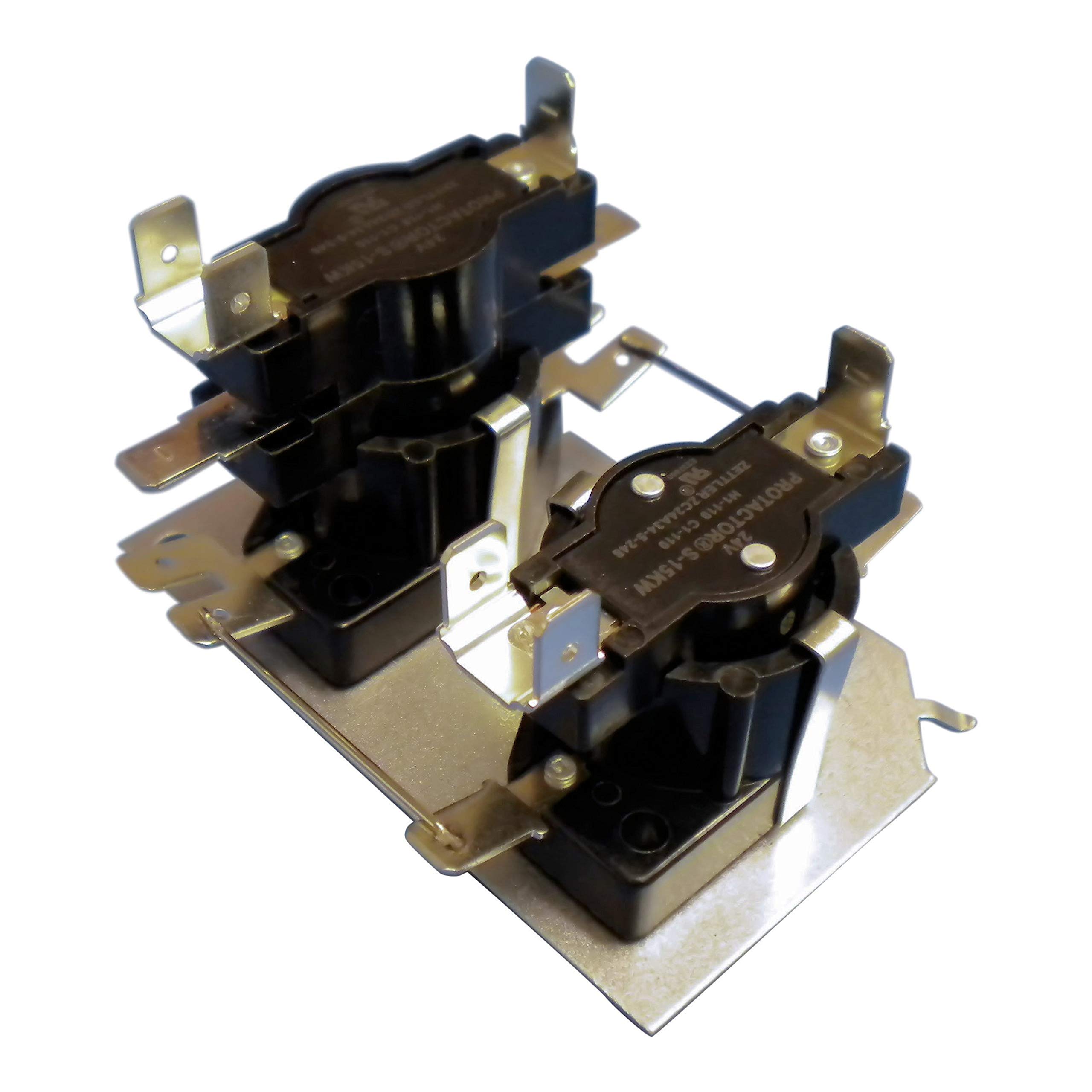

This sequencer is a universal replacement for many electric furnace models. The M1 and M2 terminals come on first and close last to hold the blower in until the elements cool down. The bottom terminals are for the 24 volt control circuit connections. The low voltage terminals have jumper bars which may be removed with wire cutters if needed. This sequencer is commonly used in electric furnaces with three elements. S-15KW replaces Coleman Evcon York Luxaire 3115-3571, S1-3115-3571, Goodman Amana Janitrol B12565-53, B1256553, 309563, Rheem Ruud Weatherking PD425120, PD425121, PD425126, 42-19813-06, and Emerson White Rodgers 24A34-5. This part is covered by the exclusive Protactor two year limited replacement policy. If this part fails within two years from date of purchase, return the defective part and a copy of the original invoice to the place of purchase for replacement. Contact the authorized Protactor dealer that you purchased the part from for details. Original equipment manufacturer's brand name(s) and part numbers are used for identification purposes only. This item is supplied by OneTrip Parts and meets or exceeds original equipment specifications.

Protactor Two Year Replacement Policy

Sequencer With Three Switches

Controls Three Elements Plus Fan - Frequently Used on 15 KW Furnaces

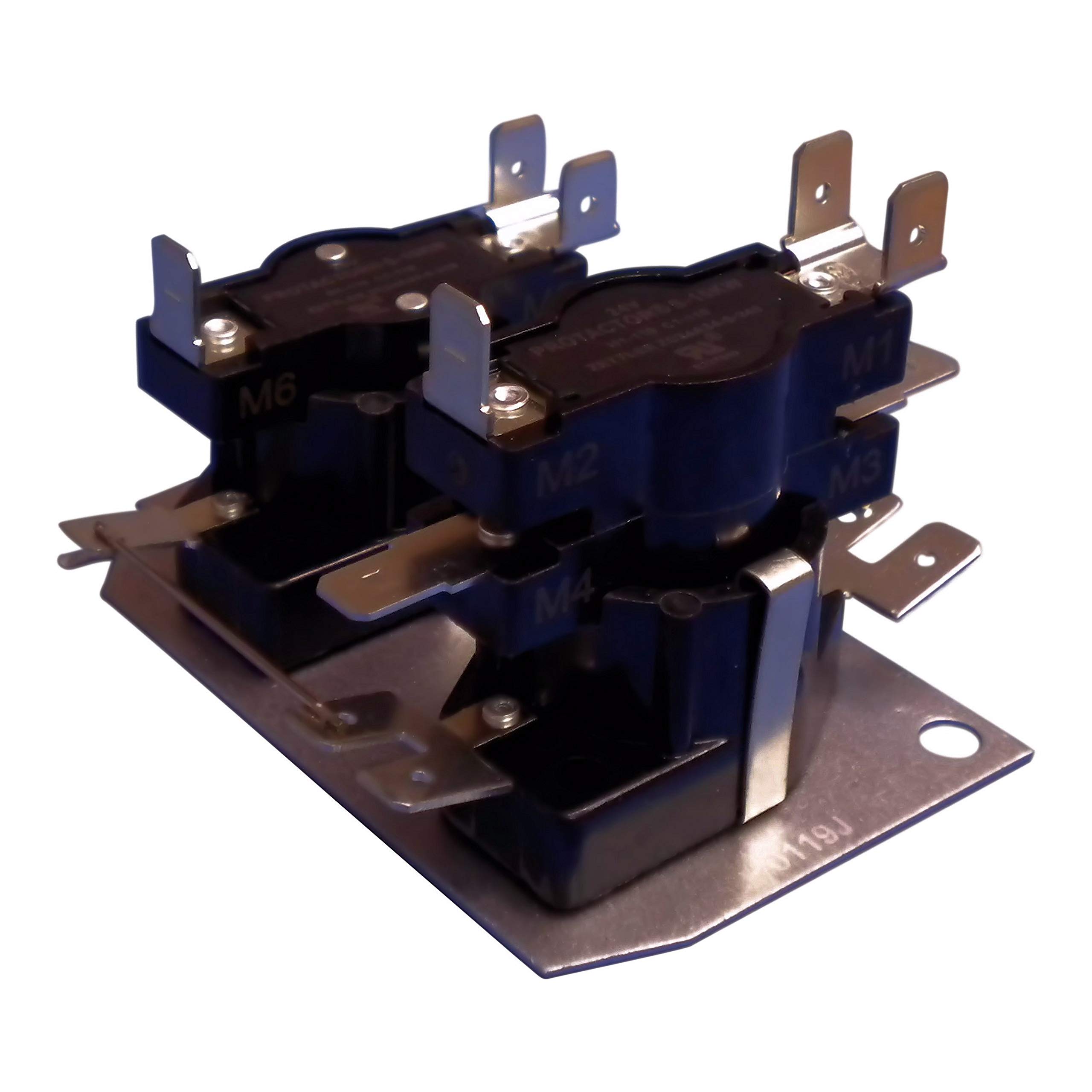

1/4" Quick Connect Terminals Marked M1, M2, M3, M4, M5, and M6

Replaces Triple Stack Sequencers Used by Most Manufacturers Including Coleman Evcon York Luxaire 3115-3571, S1-3115-3571, Goodman Amana Janitrol B12565-53, B1256553, 309563, Rheem Ruud Weatherking PD425120, PD425121, PD425126, 42-19813-06, and Emerson White Rodgers 24A34-5
